GNSS inertial navigation system INS-D-OEM miniaturehigh-accuracylightweight
Add to favorites
Compare this product
Characteristics
- Options
- GNSS, miniature, high-accuracy, lightweight, for UAVs, with integrated dual-antenna GPS, with integrated GPS, ITAR-free, OEM
Description

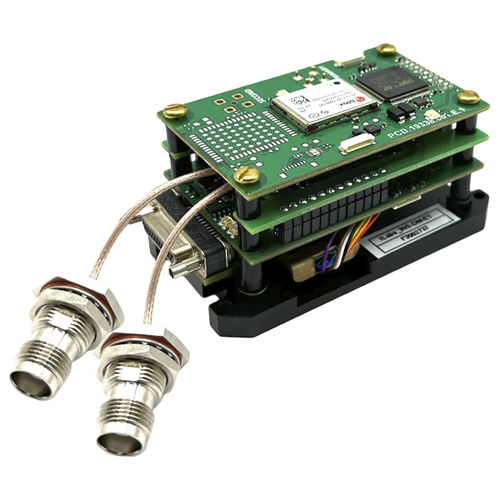

INS-D-OEM
Dual Antenna
Dual GNSS Antenna OEM INS
- - - - - - - - - -
Heading Accuracy: 0.08° (2m baseline) / 0.03° (PPK).
Position Accuracy: 0.5cm (PPK), 1cm (RTK), 60cm (SBAS).
Pitch & Roll Accuracy: 0.05° static / 0.03° dynamic / 0.006° (PPK).
GNSS Constellations: BDS, GAL, GLO, GPS, QZSS.
Corrections: DGPS, PPK, PPP, RTK, SBAS.
Type of IMU: MEMS, Tactical-grade.
Magnetometer: External Magnetic Compass (optional).
Size (mm): 85.5 x 47.7 x 40.2.
Weight (gram): 184.
Applications: Integrated Land Vehicle Navigation; Fixed Wing Navigation; Integrated Aiming.
- - - - - - - -
