AC/DC power supply REF_5AR4770AG_15W1

regulatedswitchingwide input range

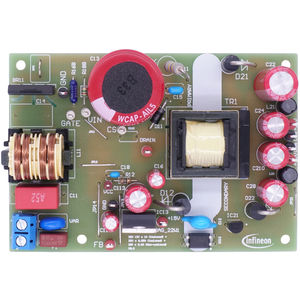

This is open frame offline switching power supply reference design. This reference board is targeted for residential indoor inverterized air-conditioning applications with multiple regulated output. It features the 5th generation fixed frequency CoolSET™ (ICE5AR4770AG) with integrated 700V superjunction MOSFET in DSO-12 package. Summary of features Line input over voltage, brown in, output over-voltage, short circuit and overload protection Summary of benefits High efficiency with frequency reduction from mid to light load condition Comprehensive protection List of components 5th generation fixed frequency CoolSETTM (ICE5AR4770AG) Summary of benefits High efficiency with frequency reduction from mid to light load condition Comprehensive protection Target applications Residential inverterized indoor air-condition and appliances with variable speed drive control Home appliances Air conditioners Industrial Power supplies SMPS
