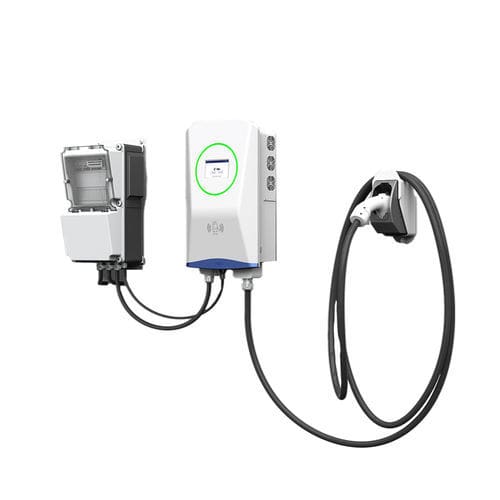

Electric vehicle charging station EXP07K1E-FSW

DCwall-mountedfloor-mounted

The EXP07K1E is Infypower's 7kW bidirectional DC wallbox charger designed for V2G/V2H and B2G/B2H applications. It enables seamless connection between an EV battery or residential energy storage battery and the single-phase AC grid. This intelligent system supports both charging and discharging, enabling key functions such as: Vehicle-to-Grid (V2G): Use EV batteries as distributed energy resources to support grid stability. Vehicle-to-Home (V2H): Provide backup power to homes during outages or peak demand. Battery-to-Grid (B2G) / Battery-to-Home (B2H): Utilize stationary home batteries for smart grid integration and household energy management. With its compact design and advanced control capabilities, the EXP07K1E transforms EVs into flexible energy assets—supporting grid resilience, reducing energy costs, and enabling smarter, more sustainable energy ecosystems. Main Features: 1. Inside high frequency transformer isolation to enhance safety 2. Residential using with low noise, <60dB, EMC class B 3. Max efficiency is higher than 95.0% 4. WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness 5. Low standby power consumption, less than 30W 6. IP65
