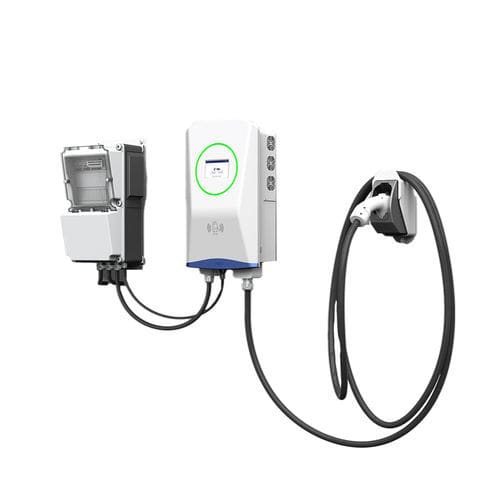

Electric vehicle charging station EXP11K1E-FSW

DCwall-mountedfloor-mounted

The EXP11K1E is an 11kW bidirectional DC wallbox charger designed for V2G/V2H and B2G/B2H applications. It enables the connection of EV batteries or residential energy storage systems to the three-phase AC grid, supporting both charging and discharging operations. Key functions include: Vehicle-to-Grid (V2G): Discharge EV battery power to the grid to support grid stability and energy balancing. Vehicle-to-Home (V2H): Supply backup power to households during outages or peak periods. Battery-to-Grid (B2G) / Battery-to-Home (B2H): Use stationary home batteries for grid interaction and residential energy management. By enabling EV to act as distributed energy resources, the EXP11K1E helps users reduce energy costs, enhance backup power reliability, and participate in smart grid ecosystems. Main Features: 1. Inside high frequency transformer isolation to enhance safety 2. Residential using with low noise, <60dB, EMC class B 3. Max efficiency is higher than 96.0% 4. WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness 5. Low standby power consumption, less than 20W 6. IP65
