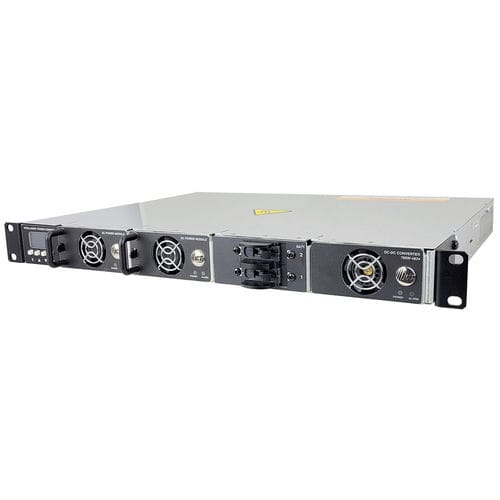

Rack-mount power supply ICT1500 series

DC/DCadjustableredundant

The ICT Hybrid Power Series combines a 48 or 24 volt DC power system with a factory installed 12 or 24 volt DC converter module to provide up to 3,000 watts maximum power flexible hybrid DC solution for wireless network sites. The Hybrid Power Series accepts one or two hot swappable 48 or 24 volt, 700 watts or 1,500 watts DC Power Modules. The integrated DC converter provides up to 700 watts of 12 or 24 volts DC output through a separate output bus bar. FEATURES Dual 100-amp battery disconnect breakers Integrated 150-amp low voltage disconnect with adjustable setpoints 90 to 95% efficiency –30°C to +60°C operating temperature range Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities Network security protocols include HTTPS, TLS 1.2, SNMP v1/v2c/v3 User adjustable output voltages and battery charge current limit Advanced battery management features including state of charge, estimated run-time remaining, battery discharge testing, temperature compensated charging Alarm reporting via text or email notification Battery temperature and site monitoring input contacts 1RU 19-inch rackmount form factor Support for lead-acid and lithium-ion battery types BENEFITS Configurable DC power system provides flexibility and scalability to meet application requirements Reduce total cost of ownership by reducing site visits and maintenance costs due to remote monitoring and control functionality Improve the quality of service and uptime of your network by quickly resolving power issues remotely User-scheduled battery testing proactively alerts users when a connected backup battery is not holding charge
