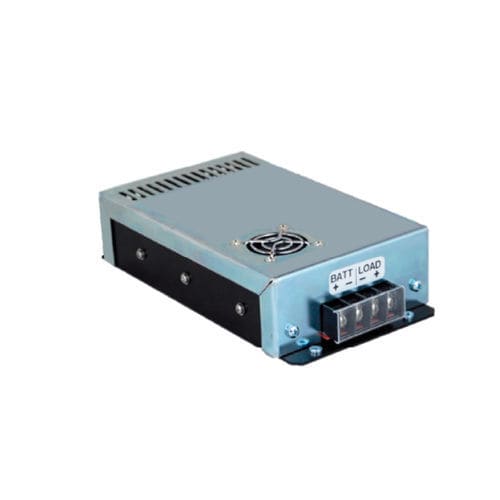

AC/DC power supply ICT240 series

adjustablefor industrial applicationscompact

The ICT Chassis Mount Series is designed for global markets, and features universal power factor corrected AC input, high efficiency of 90%, CSA/UL 60950-1 certification, and is designed to meet FCC Class B emissions standards. The Chassis Mount Series incorporates current-limited battery backup terminals for float charging a battery. Output voltage is adjustable between 12.0 and 15.5 VDC on 12-volt models, 24.0 to 31.0 VDC on 24-volt models, and 48.0 to 62.0 VDC on 48-volt models. Extended range operating temperature with temperature-controlled cooling fan and threaded mounting positions make the Chassis Mount Series ideal for outdoor power enclosures, small broadband or network power systems, and challenging industrial power applications. Features 12-, 24- and 48-volt models Adjustable output voltage range Battery backup charging terminals Universal power factor corrected AC input 90% efficiency Wide operating temperature range Threaded mounting holes Automatic protection features Beneftis Small, compact design supports variety of installation locations Separate battery charging terminals support applications requiring uninterrupted DC power
