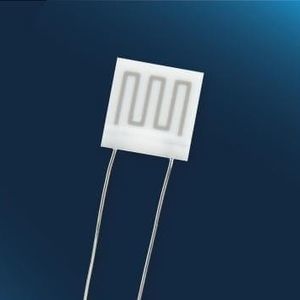

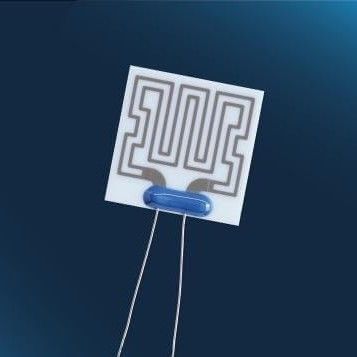

PTC heating element HST.P05R8.1515.63A.4W.020

customcompactmicro

Product overview
Micro heater with a compact footprint for targeted heating of small volumes. PTC (positive temperature coefficient) resistive element enables self-regulation and stable operation up to 400 °C.

Benefits & characteristics of iST micro heaters

• Fast response times
• High temperature stability
• Long-term stability
• Overheating protection via PTC behavior
• High heating precision
• Targeted heating of tiny spaces
• Customizable design to fit your application

Development & Technology Partner
Most micro heaters are custom-developed to meet customer application requirements. iST combines thin‑ and thick‑film PTC materials with tailored coating processes to achieve fast, homogeneous and efficient heating. iST provides simulations and technical support during development and after delivery.

Technical specifications

• Product Name: HST.P05R8.1515.63A.4W.020
• Product code: 154082
• Operating temperature range: -50 °C to +400 °C
• Resistance: 5.8 Ω at 0 °C
• Dimensions: 15 x 15 x 0.63 mm
• Lead wires: Ag wires, 20 mm
• Stock: 87 pieces available

Pricing (per piece)
5-49: CHF 11.00
50-99: CHF 8.80
100-499: CHF 7.60
