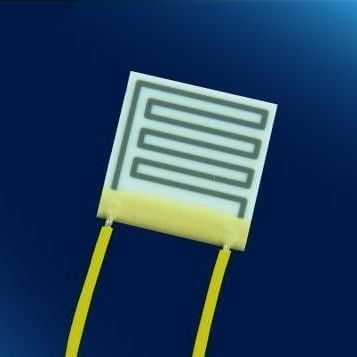

Screen-printed heating element HST.P11R0.1010.63A.2L.020

PTCcopperPTFE

Short description
Micro heater for targeted heating of small spaces.

Product identification
Product Name: HST.P11R0.1010.63A.2L.020
Product code: 154081

Operating parameters
Operating temperature range: -50 °C to +200 °C
Resistance: 11.0 Ω at 0 °C
Dimensions: 10 x 10 x 0.63 mm
Lead wires: Cu/AG PTFE insulated wires, 20 mm

Benefits & characteristics of iST micro heaters

• Fast response times
• High temperature stability
• Long term stability
• Overheating protection
• High precision
• Targeted heating of tiny spaces
• Tailor-made to fit your application

Development & Technology Partner
Most micro heaters are custom-developed to fit customers' application needs. Expertise with PTC materials manufactured using thin- and thick-film technology enables various coating techniques for application-specific property tuning for fast, homogenous, and efficient heating. Support is provided throughout the development process as well as after delivery, including simulations and technical advice.

Quality
Consistent with high-quality standards in Switzerland, iST is certified according to ISO 9001:2015 (quality) and ISO 14001:2015 (environment). Appropriate processes are part of daily work and are regularly audited and extended parallel to company growth.

Prices (per piece)
Quantity (pieces) | Price (per piece)
5-49 | CHF 9.30
50-99 | CHF 7.40
100-499 | CHF 6.40

Technical specifications

• Product Name: HST.P11R0.1010.63A.2L.020
• Product code: 154081
• Operating temperature range: -50 °C to +200 °C
• Resistance: 11.0 Ω at 0 °C
• Dimensions: 10 x 10 x 0.63 mm
• Lead wires: Cu/AG PTFE insulated wires, 20 mm
• Function: Targeted, highly localized heating of solids, liquids and gases
• Small footprint for precise heating in tiny spaces
