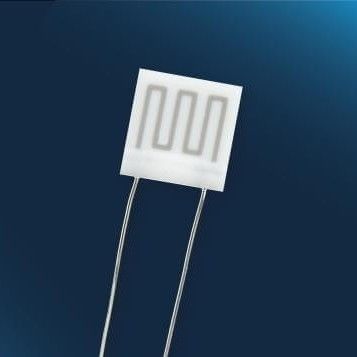

PTC heating element HST.P05R0.0505.63A.10W.015

screen-printedplatinumalumina

Short description
Micro heater based on alumina for operating temperatures up to 850 °C, designed for targeted heating of small volumes and high power density applications.

Product overview
This micro heater delivers high power density with precise temperature control and long-term stability across a wide operating range from -50 °C to +850 °C. Key advantages include:

• Fast response times
• High temperature stability
• Long-term stability
• Overheating protection
• High precision
• Targeted heating of tiny spaces
• Tailor-made to fit your application

Development & Technology
Most units are custom-developed for specific customer requirements. Expertise with PTC materials using thin- and thick-film technologies enables various coating techniques to tune properties for fast, homogeneous and efficient heating. Support during development and after delivery includes simulations and technical consulting.

Technical specifications

• Product Name: HST.P05R0.0505.63A.10W.015
• Operating temperature range: -50 °C to +850 °C
• Resistance: 5.00 Ω at 0 °C
• Dimensions: 5 x 5 x 0.63 mm
• Lead wires: Pt wires
• Product code: 155358
