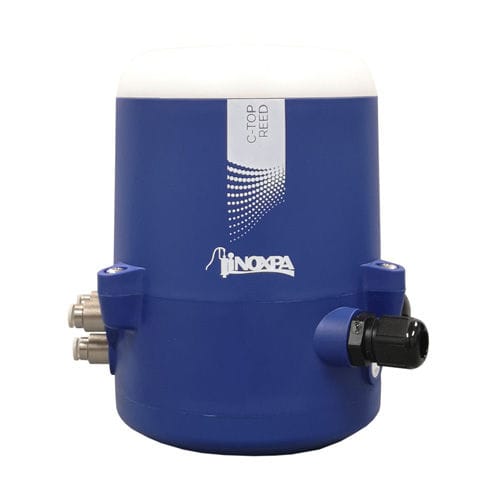

Valve control unit C-TOP REED

valve control unit
valve control unit
Add to favorites
Compare this product


Characteristics

Applications
for valves

Description

The C-TOP Reed control unit can adapt to any INOXPA actuator, and both efficiently and individually automate pneumatically driven process valves. These include: butterfly, ball or single or double seat valves. The control head contains up to a maximum of three solenoid valves, two magnetic targets and an electronic module formed by three sensors connected to the three visual indicators (LEDs). The solenoid valves which control and act on the valve are activated through external signals. At the same time, the electronic module sensors can read the position of the valve actuator through the detection of the position of the targets located on the adapter shaft and they inform of the valve state with the illuminate of the control head. The control head includes DIP switches that allow obtaining different configurations to adapt the control head to the different types of valves. The C-TOP Reed installs easily onto the top of the valve’s actuator. Quick and simple configuration. Line detection using magnetic Reed type sensors. Use of up to three solenoid valves possible. 360º vies of lights indicating valve status. Plastic parts PA6 Nuts and bolts A2 Gaskets NBR Pneumatical connections nickel-plated brass
