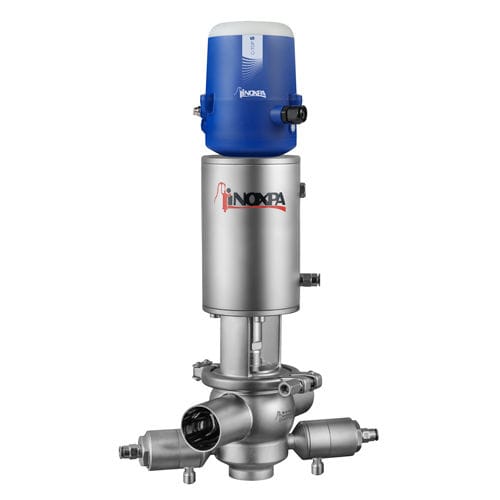

Plug valve INNOVA D

pneumaticmix-proofshut-off

The INNOVA D-type valve is a pneumatic shut-off single seat valve with two seals that, by means of a leakage chamber under atmospheric pressure formed between the two seals, enables a safe separation of two different products, one of which is usually CIP (cleaning medium). Compressed air is simultaneously applied to the actuator and to the leakage valves to prevent leakage through the leakage valve when the valve opens. Valve open - leakage valves closed / valve closed - leakage valves open. The leakage chamber can be cleaned through one of the two available leakage valves. Specific profile seat seals, conical upper seal, radial lower seal. Main valve with single acting actuator (NC) and normally open leakage valves (NO). Easy assembly/disassembly of internal parts by loosening a clamp fastener. Open lantern allows visual inspection of shaft sealing. 360º adjustable body. Parts in contact witht the product Stainless steel AISI 316L (1.4404) Other stainless steel parts Stainless steel AISI 304 (1.4301) Gasket EPDM Surface finish: Internal Bright polish Ra ≤ 0,8 μm External Matt Available sizes: DIN 11850 DN 25 – DN 100 ASME BPE OD 1’’ – OD 4’’ Connections: Weld Double-acting pneumatic actuator. Gaskets: FPM, HNBR. Other connection types. C-TOP+ control unit. External position sensors. Surface finish: Ra ≤ 0,5 μm.
