Radial diaphragm valve

manualpneumaticclamp

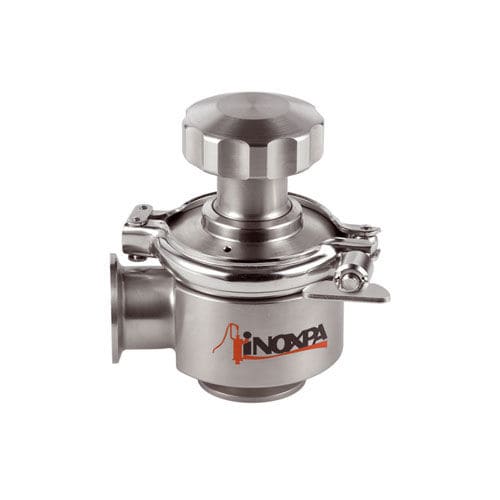

The Pharmavalve is a radial diaphragm valve, manually or pneumatically operated, specially designed for critical processes where any contamination, dead leg zones or leakage are to be avoided. Thus, the valve is suitable for hygienic and aseptic processes in the pharmaceutical and bio-pharmaceutical industries as well as in clean rooms. Hygienic design according to the EHEDG specifications. Completely drainable. Zero dead leg design. Easy cleaning. Easy assembling/disassembling and replacement of the diaphragm (bonnet and actuator are connected by clamp). Long diaphragm durability. Easy manifolding. Traceability of the components. Suitable for CIP/SIP processes. Standard connections: Clamp OD. Parts in contact with the product: AISI 316L Diaphragm: Silicone (components according to FDA177.2600 and USP class VI) Internal surafce finish: mirror polish, Ra≤0,5µm External surface finish: satin
