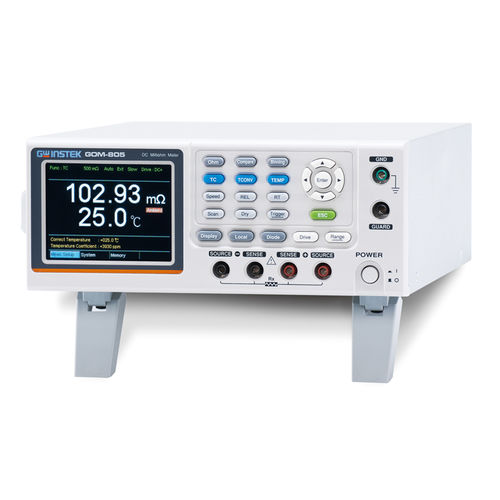

Digital ohmmeter GOM-804, GOM-805bench-toplow-resistance
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Portability
- bench-top
- Other characteristics
- low-resistance
- Resistance range
Max.: 5,000 kOhm
Min.: 0.05 kOhm
Description
50,000 counts
3.5” (320 x 240) TFT LCD display
High accuracy of 0.05% precision
1Amp test current, 1µΩ resolution
Fast measurement of 60 readings per second
Four wire resistance measurement
Temperature compensation measurement function
Delayed measurement
20 sets of panel setting memory
Dry circuit (GOM-805 only)
Drive modes: DC+/DC-, Pulsed, PWM, Zero (GOM-805 only)
Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB (option)
