XY positioning table / motorized / 2-axis / precision
XY-BSMA-LY-110H-30X30

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

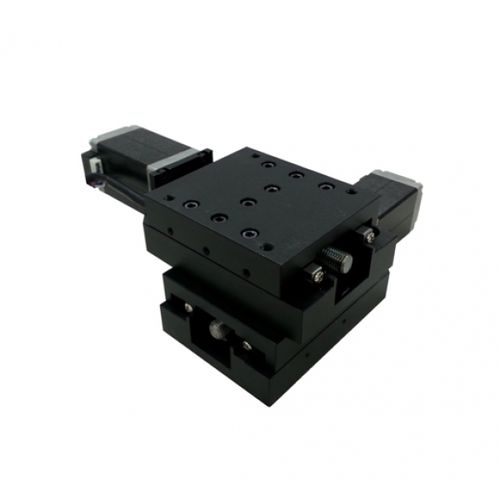

XY positioning table XY positioning table - XY-BSMA-LY-110H-30X30
{{requestButtons}}

Characteristics

  • Orientation:

    XY

  • Type:

    motorized

  • Number of axes:

    2-axis

  • Other characteristics:

    precision, compact

  • Stroke :

    Max.: 100 mm (3.937 in)

    Min.: 15 mm (0.591 in)

  • Speed:

    Max.: 300 mm/s

    Min.: 0 mm/s

Description

BSMA miniature linear actuators designed for the space confined applications while retaining the high reliability required in production environments. It is an ideal choice for measurement, testing, alignment and component assembly in any application on the factory floor or laboratory environments.

The precision ball screw or micrometer grade lead screw provide excellent accuracy and repeatability with ultra-fine positioning resolution capability of 0.1 micron or finer when driven by the stepper motor. The servomotor version is equipped with a rotary encoder and provides exceptionally smooth travel.
