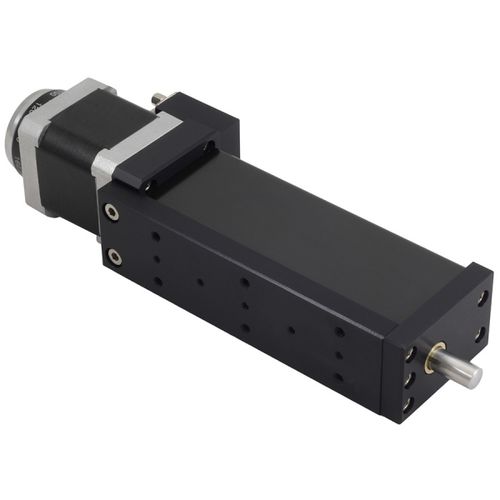

Electric actuator MLA-CMA42linearrotarystepper
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear, rotary
- Technology
- stepper, screw
- Other characteristics
- precision, motorized, small, backlash-free
- Stroke
50 mm
(1.969 in)- Force
200 N
- Speed
12 mm/s
Description
M-Thrust series precision actuators offer backlash-free motion of the shaft up to 50 mm travel range. Precision motion is accomplished by a miniature DC servo with rotary encoder or stepper motor providing 0.1 micron resolution. Precision fine pitch screw mechanism converts rotation of the motor shaft into linear travel while avoiding any backlash inside the system. This provides very responsive motion with exceptionally load capacity up to 200 N and low friction. M-Thrust actuators are offered in multiple travel ranges with limit switches at both ends of the travel.
- Stepper or DC motor driven
- Motorized screws design
- Small profile
- No backlash
- Built-in sensors
