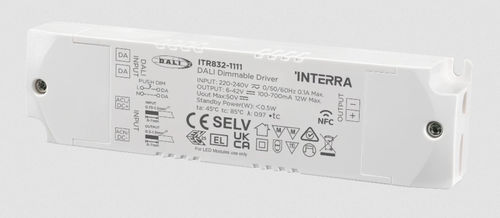

Power LED driver ITR832-1111

programmabledimmableIP20

Interra 12W NFC Programmable DALI-2 DT6 Constant Current LED Driver is DALI-2 certified and in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and compatible with universal DALI masters that support DT6 commands. It can be programmed with NFC programming APP or tool, the output current can be configured with 0.1 mA stepping between 100 - 700 mA, which ensures high current accuracy and helps to reduce stocks. DALI configurations such as addressing, grouping, scene setting, power on level, system fail level, fade time, fade rate, etc. can also be configured through NFC. With a built-in DALI-2/Push interface, the Interra DALI DT6 driver is endowed with a high power factor and efficiency. This dimmable driver has a maximum output power of 12W. With a class Ⅱ power supply and a fully isolated plastic case, it can switch and dim LED lighting fixtures. It features flicker-free and deep dimming to 0.01%. Besides, it has an error report function. Its protection grade is IP20, suitable for indoor LED lighting applications, with a 5-year warranty. Main Features: Standby Power Consumption: <0.5W Rated Power: Max. 1W Voltage: 6 - 42 V DC Size: 135 x 35 x 20 mm
