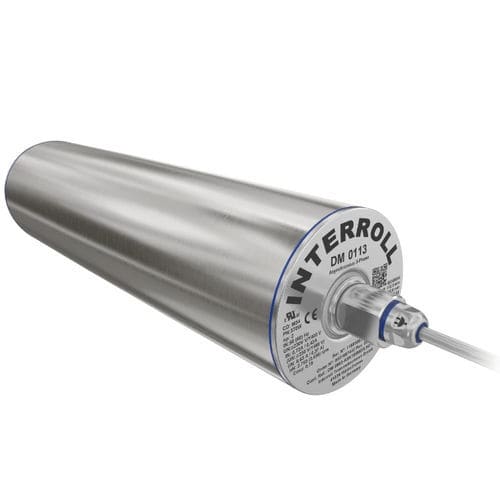

Asynchronous drum motor DM 0113

three-phasebelt-drivenfor conveyor

Belt drive for the construction of individual conveyor systems With a wide range of speeds, the DM 0113 covers all conceivable fields of application in the food sector, as well as in industry, distribution and airports. The synchronous motor variant is ideal for highly dynamic applications in conveyor systems in food processing. • Compact drive • Highly efficient • Hygienic drive, IP69k • Synchronous and asynchronous motor • Plug-and-play installation • Modular design allows it to be freely combined • Asynchronous and synchronous versions • High protection rating for applications in areas where hygiene is of importance • Plug-and-play plug connection • Various options and accessories available • Insulation class of motor windings: Class F, IEC 34 (VDE 0530) • Voltage: 230/400 V ±5% (IEC 34/38), 230 or 400 V • Frequency: 50 Hz or 200 Hz • Protection rating: IP69K • Thermal protection: Bi-metal switch • Operating mode: S1 • Ambient temperature: +2 to +40 °C
