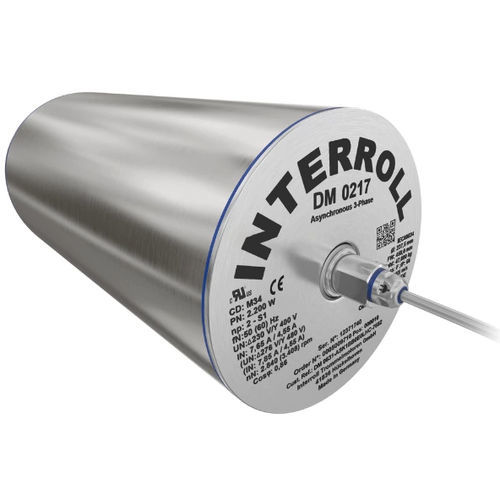

Asynchronous drum motor DM 0217

three-phasebelt-drivenfor conveyor

Belt drive for the construction of individual conveyor systems With an increased speed range, the DM 0217 covers all conceivable internal logistics applications in the food sector, as well in industry, distribution and airports. • Compact drive • Hygienic drive, IP69k • Highly efficient • Asynchronous motor • Plug-and-play installation • Modular design allows it to be freely combined • Plug-and-play plug connection • Quick to produce and deliver • Various options and accessories available • Insulation class of motor windings: Class F, IEC 34 (VDE 0530) • Voltage: 230/400 V ±5% (IEC 34/38) • Frequency: 50 Hz • Protection rating: IP69K • Thermal protection: Bi-metal switch • Operating mode: S1 • Ambient temperature: +2 to +40 °C
