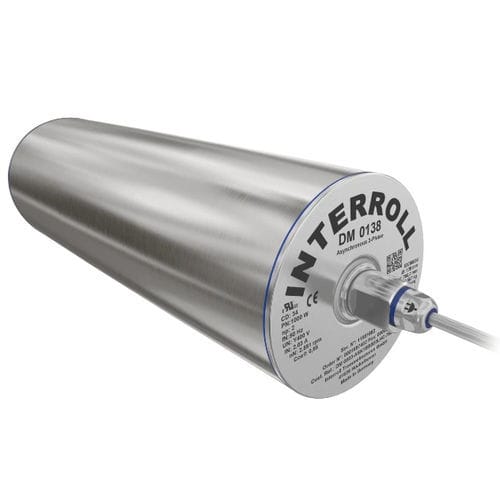

Asynchronous drum motor DM 0138

synchronousthree-phasebelt-driven

Belt drive for the construction of individual conveyor systems With a wide range of speeds, the DM 0138 covers all conceivable fields of application in the food sector, as well as in industry, distribution and airports. • Compact drive • Hygienic drive, IP69k • Synchronous and asynchronous motor • Plug-and-play installation • Highly efficient • Modular design allows it to be freely combined • High protection rating for applications in areas where hygiene is of importance • Plug-and-play plug connection • Various options and accessories available • Insulation class of motor windings: Class F, IEC 34 (VDE 0530) • Voltage: 230/400 V ±5% (IEC 34/38) • Frequency: 50 Hz or 200 Hz • Protection rating: IP69K • Thermal protection: Bi-metal switch • Operating mode: S1 • Ambient temperature: +2 to +40 °C
