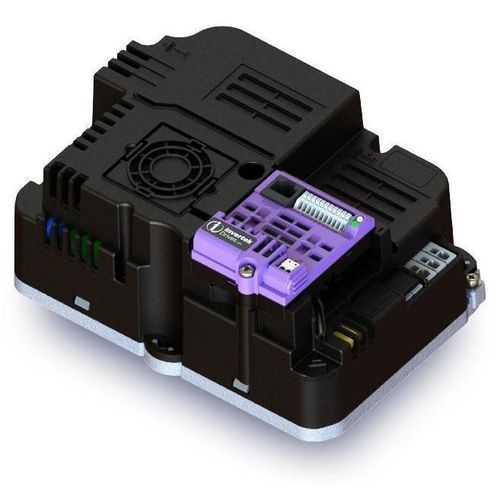

Brushless frequency inverter

inductionthree-phasesingle-phase

Overview
Compact OEM variable frequency drive offering sensorless vector control for a wide range of motor technologies. Supply voltage: 110 / 230 / 400 V; single- and three-phase input. Output power range: 0.37–4 kW (0.5–5 HP). Suitable for embedded OEM installations where compact size and flexible configuration are required.

Sensorless vector control for all motor types

• IM — Induction Motor (IE2, IE3, IE4 & IE5)
• PM — AC Permanent Magnet Motor
• BLDC — Brushless DC Motor
• SynRM — Synchronous Reluctance Motor
• LSPM — Line Start PM Motor

Flexible features for bespoke OEM applications

• Multiple motor control modes (IM, PM, BLDC & SynRM / IE2–IE4)
• Coldplate option for compact thermal management
• Customisable user interface
• Multiple communication options and expansions
• Built‑in PLC function for local logic
• Category C1 EMC filter option

Communication options

• Modbus RTU
• CAN
• Modbus TCP

Dimensions
Size | 1 | 1 PFC | 2
mm Length | 130 | 185 | 160
mm Width | 118 | 128 | 150
mm Depth | 90 | 81 | 88

Technical specifications

• Brand: Invertek Drives
• Model: Optidrive Compact 2
• Supply voltage: 110V / 230V / 400V
• Input phases: Single & 3 phase
• Output power range: 0.37 - 4 kW (0.5 - 5 HP)
• Motor control: Sensorless vector control supporting IM, PM, BLDC, SynRM, LSPM
• Key features: coldplate option, customisable UI, built-in PLC, Category C1 EMC filter
• Communication: Modbus RTU, CAN, Modbus TCP
• Dimensions (mm): see Dimensions block above
• Warranty indication on site: Up to 5 Year Warranty (product line)
