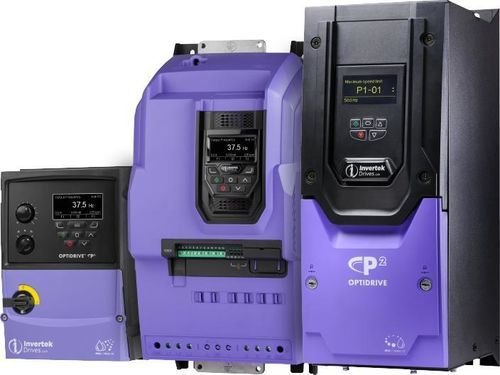

Synchronous variable-speed drive Optidrive P2

brushlessinductionthree-phase

Overview
High-performance variable frequency drive designed for heavy-duty industrial applications. Provides flexible installation and commissioning options, integrated protections and connectivity for modern motor types and control systems.

Key Performance

• Supply voltage range: 200–600 V
• Input phases: Single & 3 phase
• Output power: 0.75–250 kW (1–400 HP)
• Overload capability: 150% for 60 seconds; 200% for 4 seconds

Main Features

• Sensorless Vector Control — up to 200% torque from zero speed for reliable starting and accurate speed control under all load conditions
• PM Motor Control — supports permanent magnet motors
• Built-in EMC filter — internal EMC filter included to reduce installation cost and time
• Integral brake transistor — reduces external components and saves cabinet space
• Sensorless Vector Control for multiple motor types:
  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)
• Options & software — external EMC filters, brake resistors, input chokes, output filters and additional installation options available
• Optistick Smart compatible — rapid commissioning tool
• On-board fieldbuses: Modbus RTU and CAN as standard
• Connectivity: Bluetooth and NFC support for mobile/remote commissioning

Enclosure Options

• IP20 — compact enclosures for panel/cabinet mounting; sizes cover power ranges up to 250 kW/400 HP; operating up to 50°C; keyhole mounts for fast installation; features such as fast connection terminals, integrated help card and DIN rail/keyhole mounting options
• IP55 — enclosed industrial versions; operating range from -10°C to 50°C; provides 150% overload for 60 seconds
• IP66 / NEMA 4X Outdoor — outdoor-rated polycarbonate enclosure suitable for direct machine mounting, dust-tight and washdown ready; conformally coated PCBAs and corrosion-resistant heatsink; coated heatsink for washdown/hygiene applications; some sizes include pluggable terminals and pluggable modules

Safety and Control Highlights

• Safe Torque Off (STO) — for integration into machine safety circuits to reduce mechanical safety components and panel space
• Integrated PLC functionality — programmable logic functions, comparators, timers, math functions and drive-specific functions; program protection to prevent unauthorised copying; full control over drive I/O
• Fast connection features — 5 mm rising clamp terminals with captive screws and accessible EMC disconnect on relevant enclosures

Typical Applications & Benefits

• General industrial automation, HVAC, pumps, conveyors, food & beverage, washdown environments and other heavy-duty processes
• Improved energy efficiency and process control through modern motor support and advanced control algorithms

Technical specifications

• Model family: Optidrive P2
• Supply voltage: 200–600 V
• Input phases: Single & 3 phase
• Output power range: 0.75–250 kW (1–400 HP)
• Overload ratings: 150% for 60 s; 200% for 4 s
• Motor control: Sensorless vector control, PM motor control; supports IM, PM, BLDC, SynRM, LSPM
• Integrated features: Built-in EMC filter, integral brake transistor, Safe Torque Off (STO)
• Connectivity: On-board Modbus RTU and CAN; Bluetooth and NFC for commissioning
• Enclosure ratings: IP20 (panel), IP55 (industrial enclosed), IP66 / NEMA 4X (outdoor, dust-tight, washdown ready)
• Environmental / mechanical: IP66 units use polycarbonate, conformal coating on PCBAs and coated heatsink for washdown/hygiene applications
• Installation aids: Fast connection terminals, keyhole mounts, pluggable modules/terminals, integrated cable management, multi-language TFT display and hand/auto keypad options
