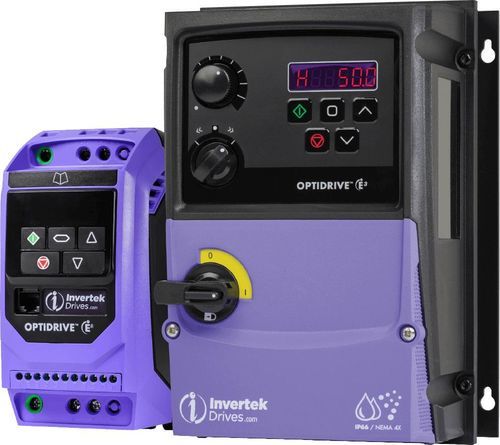

Asynchronous frequency inverter Optidrive E3

inductionsingle-phasepanel-mounted

Overview
Designed to be cost-effective and easy to use, the Optidrive E3 Single Phase Variable Frequency Drive is intended for control of PSC (Permanent Split Capacitor) and shaded‑pole single-phase induction motors. The compact E Series form factor simplifies panel or local installation and provides standard onboard communications for system integration.

Key features

• Single-phase input/output design compatible with PSC and shaded‑pole motors
• Simple commissioning: 14-parameter basic setup with default settings for common applications
• Contactor-style connections for straightforward wiring and retrofit
• Intuitive keypad for precise digital speed and ramp control
• Application macros: Industrial, Pump and Fan modes to optimise performance
• Built-in Category C1 EMC filter fitted as standard (EN61800-3:2004)
• Standard on-board communications: Modbus RTU and CAN
• Compact general-purpose E Series design focused on ease of use

Certifications & Manufacturing
Manufactured in the UK. Product range certifications include CE, CULUS, RCM, UKCA, TUV, ECA ETL and RoHS. Optidrive products carry up to a 5-year warranty depending on model and region.

Technical specifications

• Input voltage: 110–240 V (single phase)
• Power range: 0.37–1.1 kW (0.5–1.5 HP)
• Motor compatibility: PSC (Permanent Split Capacitor) and shaded‑pole single-phase induction motors
• Commissioning: 14-parameter basic setup with suitable default settings
• Wiring: contactor-style terminals for simplified installation
• Control: intuitive keypad for digital control and parameter access
• Application modes: Industrial, Pump, Fan
• EMC: Internal Category C1 EMC filter fitted as standard (EN61800-3:2004)
• Communications: Modbus RTU and CAN onboard
• Documentation: product brochure available (PDF)
