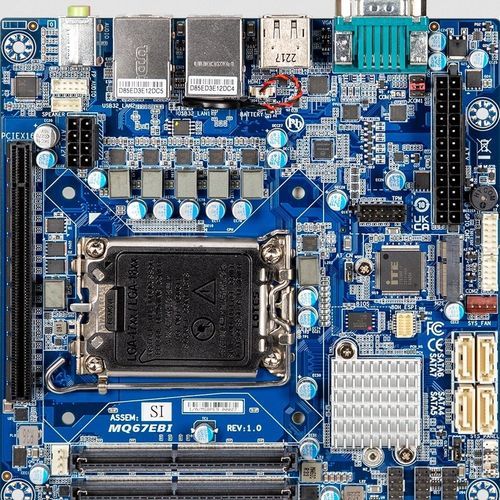

Mini-ITX motherboard mITX-Q67EB

Intel® Celeron®Intel® Core i3Intel® Core i5

Mini-ITX Motherboard, Intel 12/13th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, Q670E Chipset, Up to 64GB DDR4 RAM, HDMI, DP, VGA, 1x2.5GbE LAN, 1xGbE LAN, 2xCOM, 4xUSB 3.2, 6xUSB 2.0, 4xSATA, 2xM.2, 1xPCIe x16, 1x8-bit GPIO, Audio, TPM header, 0..60 Graphic Graphic Controller Integrated in CPU Controller Type Intel i219-LM, Intel i226V Total Ethernet 2 10/100/1000 Mbit/s 1 2,5 Gbit/s 1 Digital Input-Output Channels of DIO 8 Audio Audio Controller Realtek ALC897 Extension Slots Total 3 PCI Express x16 1 M.2 2 M.2 Form Factor 2280 M, 2230 E Dimensions and weight Width 170 mm Length 170 mm Operating Conditions Operating Temperature 0..60 °C Humidity 0-95% Standards and Certifications Certifications CE Dimensions Net Weight 0.5 kg Gross Weight 0.8 kg
