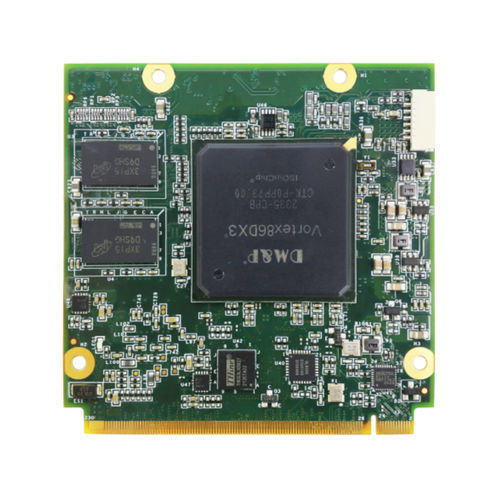

PCI Express CPU module VDX3-Q7-54E

DM&P Vortex86DXHDMISATA

Qseven CPU Module, Vortex86DX3 800MHz SoC, 1GB DDR3 RAM, HDMI/LVDS, 1xGbE LAN, 1xCOM, 7xUSB 2.0, Audio, 8-bit GPIO, SPI, I2C, SATA, SD, Audio, 4xPCIe Gen1 CPU Socket CPU onboard Max CPU frequency 800 GHz Chipset SoC Memory Socket Type Soldered ECC No Default on Board Memory 1 GB Assembly Fixed on Board Graphic Graphic Controller Integrated in CPU Total Ethernet 1 10/100/1000 Mbit/s 1 Digital Input-Output Channels of DIO 8 Drive interfaces SATA 3 1 SD Slots 1 Extension Slots Total 1 PCI Express x4 1 Dimensions and weight Width 70 mm Length 70 mm Operating Conditions Operating Temperature -20..70 °C Humidity 10-90% Dimensions Net Weight 0.06 kg Gross Weight 0.06 kg
