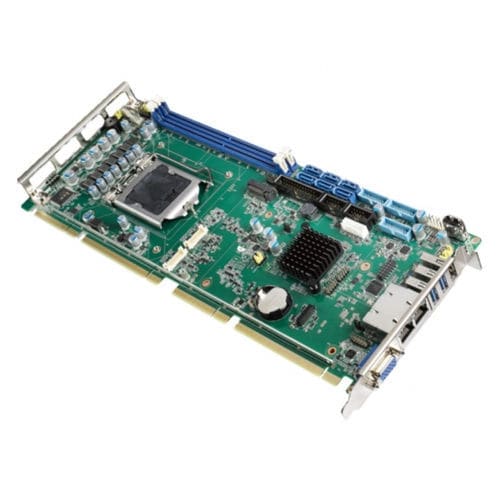

PICMG 1.3 CPU board PCE-7132G2-00A2Intel® Celeron®Intel® Core i3Intel® Core i5
Add to favorites
Compare this product
Characteristics
- Bus standard
- PICMG 1.3
- Processor
- Intel® Xeon, Intel® Celeron®, Intel® Pentium, Intel® Core i7, Intel® Core i5, Intel® Core i3
- Ports
- DDR4 SO-DIMM, SATA, RS-232, USB 2.0, gigabit Ethernet, USB 3.2, VGA, DisplayPort, DVI
- Data storage
- eMMC 64GB
- Memory size
64 GB
Description
PICMG 1.3 LGA1200 Intel Xeon W/ Core i7/i5/i3/Pentium/Celeron CPU Card with Intel W480E, DDR4, VGA, DVI-D, DisplayPort 2xGbE LAN, 6xUSB 2.0, 8xUSB 3.2, 2xCOM, 6xSATA (RAID 0/1/5/10)
Memory
Socket Type
2xDIMM
ECC
Yes
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Drive interfaces
RAID Levels
1, 5, 10
Dimensions and weight
Width
338 mm
Length
122 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
