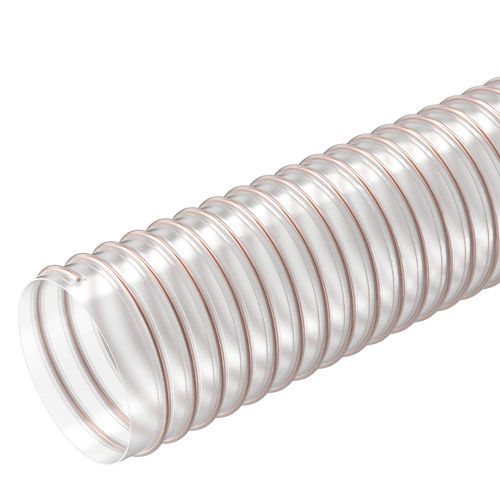

Bulk material hose NEXT 15
for powdersTPUsuction

bulk material hose
bulk material hose
bulk material hose
bulk material hose
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for powders
Material
TPU
Applications
suction, for vacuum, heavy-duty, for industrial vacuum cleaners, building, for the wood industry, for the plastics industry
Other characteristics
oil-resistant, flexible, abrasion-resistant, chemical-resistant, lightweight, with copper ground wire, for abrasive products, UV-resistant, with smooth inner surface, reinforced, coated, anti-static, spiral wire, translucent, hydrolysis-resistant, vacuum
Inner diameter

Max.: 203.2 mm
(8 in)

Min.: 40 mm
(1.575 in)

Outer diameter

Max.: 206.2 mm
(8.118 in)

Min.: 43 mm
(1.693 in)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 20 m, 30 m
(49'02" , 65'07" , 98'05" )

Description

COLOR: Translucent with high adhesion TPU coated coppered steel spiral FEATURES Ester based Polyurethane duct reinforced with a TPU coated high adhesion steel spiral. Totally smooth inside to ensure optimization of flow properties. Constant Wall thickness of 1,5 mm through all the diameter range Strong but light and flexible, it’s suitable to heavy duty applications where a very good abrasion resistance is required, thanks to a specially compounded polyurethane 50% more resistant to abrasion of conventional TPU. Resistant to mineral oils, ageing, atmospherical agents, ozone and to most chemicals. Free of Halogen and Phthalates. NEXT 15 is made by a special TPU that combines different properties which make the wall material permanent antistatic ((109 Ohm/m) and resistant to UV. Thanks to the excellent quality of compound used, the hose is more resistant to Hydrolysis than a conventional Ester-based TPU hose. It can be conductive (10 2 Ohm/m) by grounding the spiral. APPLICATION: passage of highly abrasive granulates, pellets and chips. For granulate conveying systems in the plastic industry, industrial vacuum cleaners, printing machines and for gaseous and liquid media.
