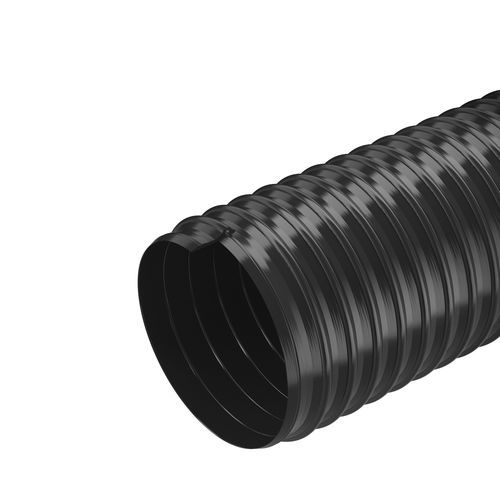

Bulk material hose VULCANO® 15 EL
for abrasive productsfor powdersTPU

Bulk material hose - VULCANO® 15 EL - IPL SPA - for abrasive products / for powders / TPU
Bulk material hose - VULCANO® 15 EL - IPL SPA - for abrasive products / for powders / TPU
Bulk material hose - VULCANO® 15 EL - IPL SPA - for abrasive products / for powders / TPU - image - 2
Bulk material hose - VULCANO® 15 EL - IPL SPA - for abrasive products / for powders / TPU - image - 3
Add to favorites
Compare this product

Characteristics

Use
for bulk materials, for abrasive products, for powders
Material
TPU
Applications
for the plastics industry, suction, for pneumatic conveying, transfer, for the chemical industry, for the ceramics industry, for vacuum, heavy-duty, for the wood industry, low-temperature, for suction units, for hazardous environments
Other characteristics
smooth, flexible, reinforced, self-extinguishing, abrasion-resistant, chemical-resistant, high-resistance, lightweight, weather-resistant, UV-resistant, anti-static, with smooth inner surface, ATEX, vacuum, spiral wire, electrically-conductive, flame-retardant, coated
Inner diameter

Max.: 203 mm
(7.992 in)

Min.: 38 mm
(1.496 in)

Outer diameter

Max.: 206 mm
(8.11 in)

Min.: 41 mm
(1.614 in)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 20 m
(49'02" , 65'07" )

Description

Color: Black Features: Ester based TPU hose reinforced with TPU coated high adhesion steel spiral. Raw material with permanent electrical conductive features (R<10⁴ Ohm/m), according to ISO 8031. Smooth inside to ensure optimization of flow properties. Constant wall thickness of 1,5 mm for the whole diameter range. Strong but very flexible even at low temperatures, is suitable to heavy duty applications where a very good abrasion resistance is required. The hose is able to transfer electrostatic charges when installed on implants suitably earthed. The hose meets the requirements of the widely known regulations in electrostatic field: ATEX, ISO 8031. Application: suction of granulates, abrasive powders and sawdust. For plastic woodworking and ceramic industries, dedusting and suction plants.
