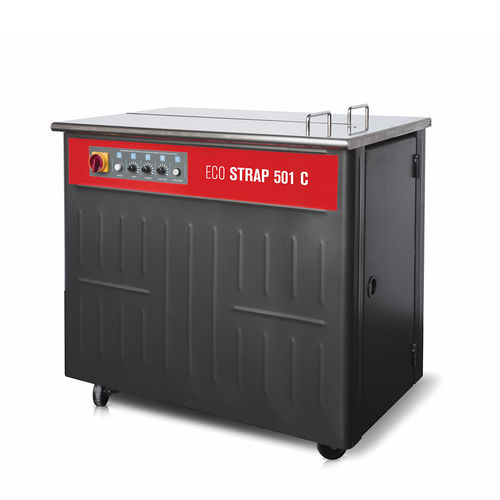

Semi-automatic strapping machine Eco Strap 501 C

manualfor bottle packsfor cardboard boxes

The Eco Strap 501 C strapping machine is a new generation semiautomatic machine. It has a closed structure that can be inspected internally through the opening of the working table and through a side door from which it is also possible to replace the strap coil. It works with DC motors arranged for each function of the machine. Thanks to its pivoting wheels it is possible to easily move the machine according to needs. Low-cost and compact strapping machine, designed for common uses and medium-low work volumes. The Eco Strap 501 C semi-automatic strapping machine is ideal for strapping boxes, packs, bundles, etc. It can be used in warehouses, offices, supermarkets and wherever there is a need for safe packaging. Technical characteristics of the strapping machine Hinged worktop with safety sensor Pack stop systems in steel on the work surface Sturdy strapping head Possibility of using different strap sizes Motor operation only during the strapping cycle Strapping unit with direct current motors Strap ring expulsion in case of accidental cycle start (loop ejection) Analog control panel Minimum tension of only 3 Kg Maximum tension up to 45 Kg Four pivoting wheels, two of which with brakes Easyfast® strap guide disassembly system (without tools) Automatic ejection of a piece of strap at the end of the reel Weld cooling time adjustment (COOL TIME) Strap tension adjustment via potentiometer Temperature adjustment of the sealing blade Length adjustment of the strap to be dispensed
