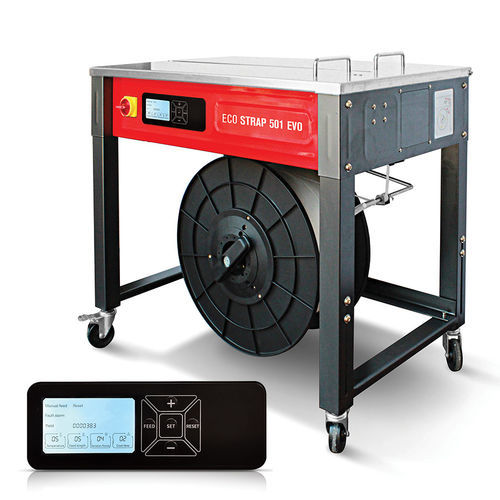

Semi-automatic strapping machine Eco Strap 501 EVO

for polypropylene straps220V single phasefor the packaging industry

Overview
The Eco Strap 501 EVO is a semi-automatic benchtop/trolley-mounted strapping machine designed for reliable and efficient operation in low- to medium-volume packaging environments. It integrates a user-friendly digital control panel, dedicated DC motors for each function and swivel wheels to ease movement in the workspace.

Semi-automatic strapping machine with integrated digital panel
The integrated digital panel allows straightforward adjustment and storage of parameters such as sealing cooling time, sealing blade temperature, strap length, tension level and work cycles. Motors operate only during the strapping cycle to improve energy efficiency.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Good value for money
• 12-month warranty on spare parts
• Compact design for easy storage
• Manufacturer with over 35 years on the market

Key Features

• Hinged worktop with safety sensor
• Digital strap tension control
• Robust strapping head
• Compatible with multiple strap widths
• Strapping unit with DC motors
• Integrated digital control panel
• Minimum tension: 3 kg
• Maximum tension: up to 45 kg
• Four swivel wheels, two with brakes

Functions of the digital panel

• Strap feed / strap launch
• Tension level adjustment
• Sealing blade temperature adjustment
• Sealing cooling time
• Strap length to be delivered
• Manual strap launch command
• Reset function
• Storage / counting of work cycles

Characteristics of workable products

• Minimum product dimensions: L 80 x W 80 x H 3 mm
• Maximum product weight: 25 kg

Strapping coil features

• Coil internal diameter: 200 mm
• Coil outer diameter: 400–500 mm
• Coil width: 190 mm
• Strap width: 6 – 9 – 12 – 15 mm
• Strap thickness: 0.5 – 0.7 mm
• Strap type: PP (Polypropylene)

Technical specifications

• Supply voltage: 220 V, 1 ph
• Power frequency: 50 / 60 Hz
• Installed power: 0.25 kW
• Machine size: L 850 x W 555 x H 750 mm
• Work surface height: 750–900 mm (adjustable)
• Strapping speed: 10–15 cycles/min
• Tension force: 3 – 45 kg (adjustable)
• Coil internal diameter: 200 mm
• Coil outer diameter: 400–500 mm
• Coil width: 190 mm
• Compatible strap widths: 6 / 9 / 12 / 15 mm
• Strap thickness: 0.5–0.7 mm (PP)
