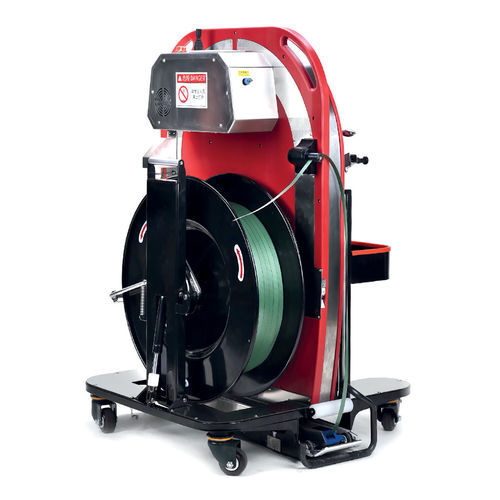

Automatic strapping machine Flexy Strap T550

for polypropylene strapsfor polyester strapsfor logistics

Short description
The Flexy Strap T550 is a battery-powered, wheeled automatic strapping machine for pallet strapping, compatible with 12–19 mm PP and PET straps. Its compact footprint and high manoeuvrability allow fast positioning alongside loads to optimise warehouse strapping operations.

Operation
Positioning is assisted by a laser projection on the floor indicating the correct distance between the machine and the pallet. The retractable backrest (spine) is extracted via joystick so the strap can be slid around the pallet and returned to the operator. The backrest is then retracted and the strap is tensioned, welded and cut using a strapping tool mounted on a dedicated bracket, ensuring a fast, precise and efficient cycle.

5 great reasons to choose this product

• Technical support during purchase
• Competitive price-performance ratio
• 12-month warranty on spare parts
• Quick handling and storage
• Supplier present on the market for over 35 years

General characteristics of the launcher
Battery supply: 36 V 10 Ah (up to approx. 600 strapping operations per charge). Retractable backrest adjustable from the touch screen; joystick control for extraction and retraction. Net weight: 110 kg. Compatible with PP or PET strapping, widths 12–19 mm.

Machine features

• Dimensions: L 860 x W 770 x H 1210 mm
• Machine weight: 110 kg

Strapping coil features

• Coil inner diameter: 392–406 mm
• Coil width: 160 mm
• Strap width: 12 / 15 / 19 mm
• Strap thickness: 0.6 – 1.2 mm
• Strap type: PP or PET

Technical specifications

• Back length options: 0.70, 0.85, 1.00, 1.15, 1.30, 1.45, 1.60, 1.75, 1.90, 2.05 m
• Power: battery 36 V 10 Ah (approx. up to 600 operations per charge)
• Retractable backrest adjustable via touch screen; joystick control for extraction/retraction
• Includes bracket to attach a strapping tool for tensioning, welding and cutting
• Compatible coil internal diameter: 392–406 mm; coil width: 160 mm
• Accepts strap widths: 12 / 15 / 19 mm and thicknesses 0.6 – 1.2 mm
