Electric actuator linearDC12-volt
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Motor
- DC
- Voltage
- 12-volt
- Protection class
- IP69K
- Applications
- for process automation, industrial, for the automotive industry
- Other characteristics
- compact, small, pull
- Stroke
8 mm
(0.315 in)- Force
100 N
Description

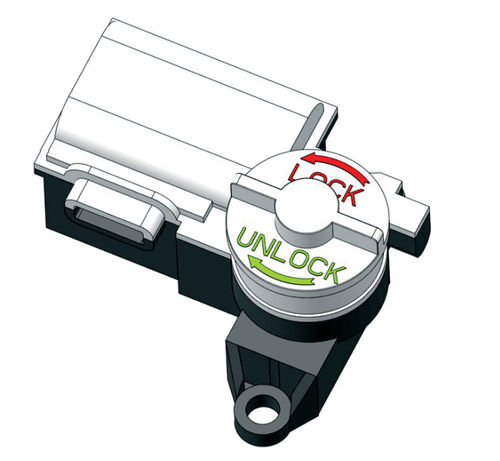

Locking Actuator
Highlights:
■ High Force
■ High Shear Force
Locking actuator
Product Highlights
Typical Applications
Automotive, Industrial, Automation
Small
Small Size: 56 x 47 x 32 mm Low Weight: 70 g
Strong
Force: 100 N
Robust
IP protection: IP69K Benefit
High Force, High Shear Force
Technical Data
Motor Type: Brushed DC
Weight: 70 g
Voltage Range: 9 ~ 16 V
Stall Current: 2 A
Température Range: -40° ~ +90°C
Stroke: 8 mm (configurable)
Actuation force (at 12 V, 1 A, 23°C)
Push / Pull: 100 N Optional manual release lever
