Plastic recycling unit 40/80S – GR500

with pelletizing

Overview

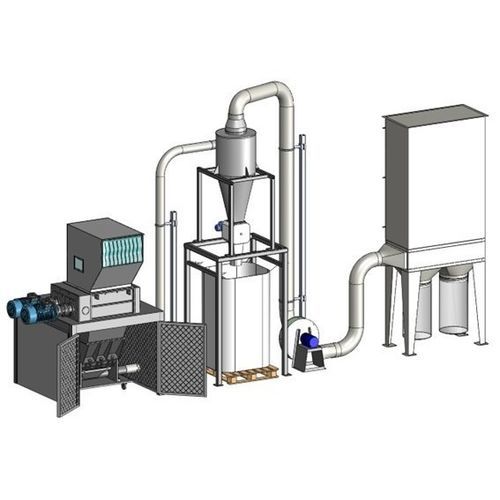

Combined inline system consisting of a 40/80S industrial shredder coupled with a GR500 granulator, designed for primary size reduction and subsequent granulation of bulky and rigid materials.

Shredder characteristics

• Heavy-duty electro-welded sheet steel frame
• Barrel roller bearing supports with sealing against dust and liquids
• Interchangeable wear-resistant side plates separating cutting chamber from bearing flanges
• Extra-thick shafts with 20 wear-resistant special steel cutters and 20 insertion discs for handling bulky items
• Staggered cutter tooth arrangement for improved grip and cutting progression
• Two epicyclic gearboxes with axes parallel to cutter axis
• Two multi-voltage/multi-frequency 7.5 kW, 6-pole motors (IE3)
• Oil-bath transmission with steel gears and pinions
• Protection bar for shredder electric motors
• 400 × 800 mm cutting chamber and electrowelded metal hopper for front/top loading with sliding cover and anti fly-back rubber strips

Granulator characteristics

• Robust electro-welded tubular steel support structure for GR500
• Soundproofed sheet metal panelling and soundproof housing chamber with safety access door for maintenance
• Double closing door with electric lock and safety micro-switch for granulator extraction
• Internal alignment guides for accurate centring of the GR500
• Extra-thick steel rotor-holder case with open central rotor Ø260 mm and interchangeable, re-sharpenable high-alloy blades
• 300 × 500 mm loading hopper and axial-adjustable fixed blade set
• Interchangeable screen up to 4 mm
• Drive via high-strength V-belts on flywheel and 11 kW motor mounted on slides for belt tension adjustment

Control system characteristics

• Electrical switchboard complying with CEE standards with torque limiter to reverse rotor on overload
• SIEMENS S7-1200 PLC controlling all plant peripherals
• 6” colour touch screen HMI to set machine parameters
• AUTO TUNING ISVE self-adjustment programme
• Software for managing loading systems, refiner/granulator and optional vacuum system
• Emergency stop and safety control functions
• ISVE MAINTENANCE PROGRAM indicating scheduled maintenance on the HMI
• Predisposition for remote assistance and SAFETY SERVER CONNECTION ISVE for real-time supervision
• Execution according to CE standards.

Other features

• SIEMENS motors and control
• Anti-torsion shaft
• Touch panel HMI
• ISVE Maintenance Program and server connect ready

Technical specifications

• Model: 40/80S shredder combined with GR500 granulator
• Shredder cutting chamber: 400 × 800 mm
• Shredder shafts: extra-thick with 20 wear-resistant cutters and 20 insertion discs
• Shredder motors: 2 × 7.5 kW, 6-pole, multi-voltage/multi-frequency (IE3)
• Shredder transmission: oil-bath with steel gears and pinions; 2 epicyclic gearboxes
• Granulator rotor diameter: Ø260 mm (open central rotor); useful width 500 mm
• Granulator loading hopper: 300 × 500 mm
• Granulator motor: 11 kW on slides for belt tension adjustment
• Granulator screen: interchangeable up to 4 mm
• Drive: high-strength V-belt on flywheel (granulator)
• Hopper: electrowelded sheet metal, front or top loading with sliding cover and anti fly-back rubber strips
• Control: SIEMENS S7-1200 PLC, 6” colour HMI, torque limiter, AUTO TUNING ISVE
• Safety/standards: CE execution; double door with electric lock and safety micro-switch on granulator access
