Plastic recycling unit 80/80S – GR600
with pelletizingcrushing

Plastic recycling unit - 80/80S – GR600 - ISVE - with pelletizing / crushing
Plastic recycling unit - 80/80S – GR600 - ISVE - with pelletizing / crushing
Plastic recycling unit - 80/80S – GR600 - ISVE - with pelletizing / crushing - image - 2
Plastic recycling unit - 80/80S – GR600 - ISVE - with pelletizing / crushing - image - 3
Plastic recycling unit - 80/80S – GR600 - ISVE - with pelletizing / crushing - image - 4
Add to favorites
Compare this product

Characteristics

Applications
plastic
Functions
crushing, with pelletizing

Description

Overview

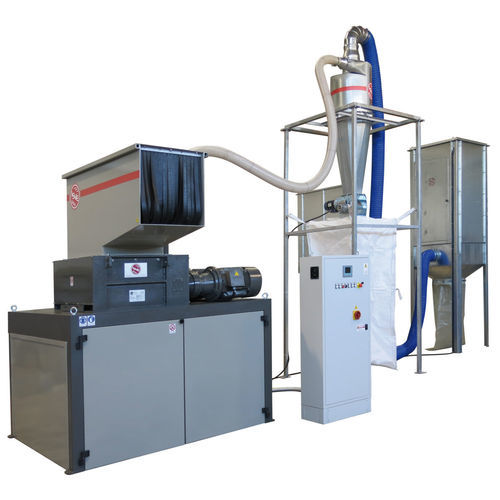

The system consists of a Combi 80/80S shredding unit arranged in line with a GR600 granulator for continuous primary size reduction and secondary granulation.

Shredder characteristics
  • Heavy electro-welded sheet-steel frame
  • Barrel roller bearing supports with seals against dust and liquids
  • Interchangeable wear-resistant side plates isolating the cutting chamber from bearing flanges
  • Extra-thick shafts fitted with 42 anti-wear steel cutters and 42 conveyor disks to improve grip on bulky items
  • Staggered cutter tooth arrangement for progressive cutting and better feed
  • 2 epicyclic gearboxes with rotation axes parallel to the cutter axis
  • 2 multi-voltage/multi-frequency 11 kW, 6-pole motors, efficiency class IE3
  • Oil-bath transmission with steel gears and pinions
  • Cutting chamber dimensions: 800 x 800 mm
  • Electrowelded sheet-metal hopper for front or top loading with sliding cover and anti fly-back rubber strips


Granulator characteristics
  • Robust electro-welded tubular-steel support structure for the GR600 granulator
  • Soundproofed sheet-metal panelling
  • Double-closing door with electric lock and safety microswitch for extractor access
  • Internal guides to facilitate centring of the GR600 granulator
  • Extra-thick electro-welded rotor-holder case with open central rotor Ø360 mm and interchangeable, sharpenable high-alloy steel blades
  • Loading hopper: 420 x 620 mm
  • Soundproofed housing with service door and safety for granulator extraction
  • Set of axially adjustable fixed blades
  • Interchangeable screen up to 4 mm
  • Drive via high-strength V-belts on the flywheel
  • 22 kW granulator motor mounted on slides for belt-tension adjustment


Control system
  • Electrical switchboard in compliance with CEE standards with torque limiter that reverses rotor motion if working load exceeds set value
  • SIEMENS S7-1200 PLC for plant peripheral control
  • 6" colour touch-screen for machine parameter adjustment
  • New AUTO TUNING ISVE self-adjustment program
  • Software to control loading systems, refiner mill and/or vacuum system
  • Emergency stop and control functions
  • ISVE MAINTENANCE PROGRAM to signal routine maintenance tasks
  • Predisposition for remote assistance and SAFETY SERVER CONNECTION ISVE for real-time parameter supervision
  • Execution according to CE standards


Other features / Included options
  • SIEMENS motors (optional)
  • SIEMENS control integration
  • Anti-torsion shaft
  • Touch panel
  • ISVE Maintenance Program
  • ISVE Server Connect predisposition (remote connection)


Technical characteristics / specifications
  • Commercial model: Combi 80/80S – GR600
  • Shredder cutting chamber: 800 x 800 mm
  • Shredder cutters: 42 anti-wear steel cutters on extra-thick shafts with 42 conveyor disks
  • Shredder motors: 2 x 11 kW, 6-pole, multi-voltage/multi-frequency, IE3
  • Granulator rotor: Ø360 mm with interchangeable high-alloy blades
  • Granulator loading hopper: 420 x 620 mm
  • Granulator drive: high-strength V-belts; granulator motor 22 kW on slides
  • Interchangeable granulator screen up to 4 mm
  • Transmission: oil-bath system with steel gears and pinions
  • Control: SIEMENS S7-1200 PLC, 6" colour touch-screen, torque limiter protection
  • Safety/standards: CE execution; safety doors with electric lock and microswitches
