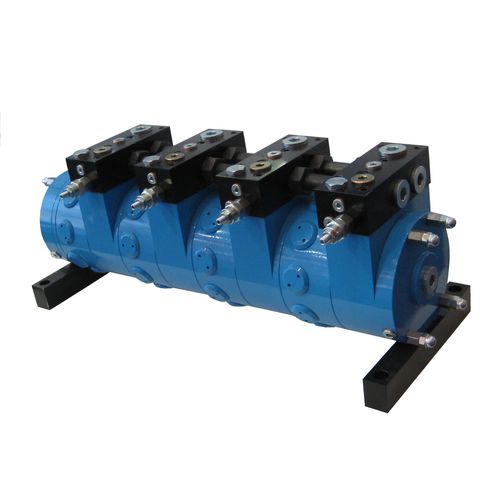

Radial piston flow divider FDM, FDMC Series
multi-channelhydraulic

radial piston flow divider
radial piston flow divider
Add to favorites
Compare this product


Characteristics

Technology
radial piston
Number of channels
multi-channel
Flow type
hydraulic
Operating pressure

250 bar
(3,626 psi)

Flow rate

Max.: 280 l/min
(74 us gal/min)

Min.: 45 l/min
(12 us gal/min)

Displacement

Max.: 494 cm³
(16.7 US fl oz)

Min.: 34 cm³
(1.15 US fl oz)

Description

The FDM radial piston flow dividers allow a single flow to be divided into up to 10 sections, with different division ratios. Thanks to the high volumetric efficiency of the radial piston construction type, this is combined with precision levels exceeding 99% and the option of flanging synchronisation valves directly to the unit. Features: - two-stages and multi-stages flow dividers - high cavitation resistance - accuracy: up to 99% - wide working range - add-on relief & cavitation valves - different synchronization ratios available
