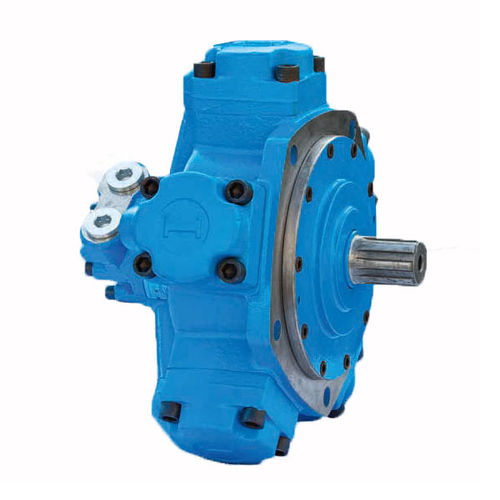

Radial piston hydraulic motor IAMD Seriesfixed-displacementfor heavy-duty applications
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- fixed-displacement, for heavy-duty applications
- Pressure
Min.: 180 bar
(2,611 psi)Max.: 270 bar
(3,916 psi)- Rotational speed
Min.: 80 rpm
(502.65 rad.min-1)Max.: 900 rpm
(5,654.87 rad.min-1)- Torque
Min.: 5 Nm
(3.69 ft.lb)Max.: 128.3 Nm
(94.63 ft.lb)- Displacement
Min.: 300 cm³
(10.14 US fl oz)Max.: 8,062 cm³
(272.61 US fl oz)
Description
Higher-powered version of the IAM series. the use of low friction materials and hydrostatic balancing makes these motors ideal for the most demanding applications, where high performances are required even for long duty periods.
Features:
- fixed displacement
- displ. range: 300 cc/rev – 8000 cc/rev
- heavy duty
- higher mechanical efficiency, speed and power than standard IAM series
- interchangeable mounting face with main competitors
Catalogs
IAMD Series
176 Pages
