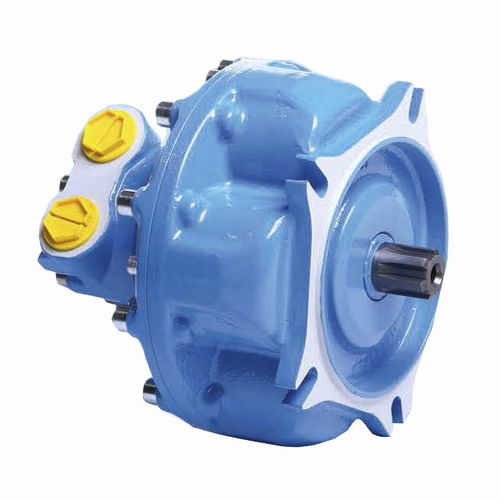

Radial piston hydraulic motor HCD Series
fixed-displacementcast ironhigh-pressure

radial piston hydraulic motor
radial piston hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
radial piston
Other characteristics
fixed-displacement, cast iron, high-pressure, swing drive, flange-mount
Pressure

Min.: 0 bar (0 psi)

Max.: 450 bar (6,527 psi)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 2,200 rpm (13,823.01 rad.min-1)

Torque

Min.: 0.62 Nm (0.46 ft.lb)

Max.: 25.9 Nm (19.1 ft.lb)

Displacement

Min.: 40 cm³ (1 US fl oz)

Max.: 1,635 cm³ (55 US fl oz)

Description

HCD is an High Performance Radial Piston Hydraulic Motor capable to work up to 450 bar in a wide speed range. Its Innovative Swivelling Cylinder System (Patented by Italgroup) grants High Efficiencies from 0 to 2200 rpm. Ideal for transmissions which need high efficiency for the whole operating range. Features: - fixed displacement - displ. range : 40 cc/rev - 1625 cc/rev - wide speed range : 0 to 2200 rpm - swivelling cylinder system - interchangeable mounting face
