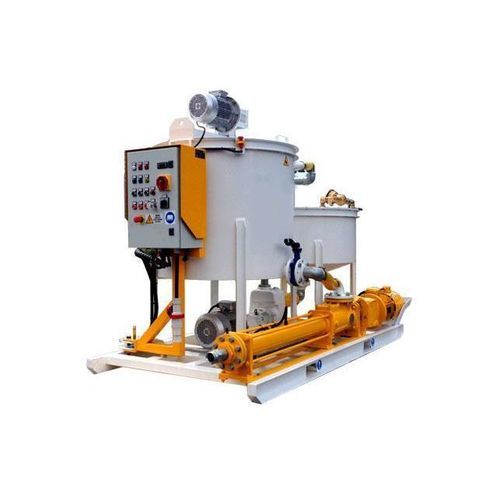

Mixer pump MINIGROUT II S

Minigrout II S should be used with fluid mixtures such as mortar, bentonite, additives and concrete aggregate with a 4 mm maximum grain size. - The screw pump ensures the constant flow of 10 m³/h and arrives up to max. pressure of 25 bar. It is possible to adjust flow thanks to the potentiometer. - The rotating support of the control panel makes the work of the operator easier. - High shear mixer: 350 l – motor 7.5 kW - Agitator: 700 l – motor 3 kW - Grout pump: Qmax: 167 l/min, Pmax: 25 bar – motor 7.5 kW Technical Specifications: - Suitable for fluid mixtures: mortar, bentonite, additives, concrete aggregate (max grain size 4 mm) - Constant flow: 10 m³/h - Maximum pressure: 25 bar - Adjustable flow via potentiometer - Rotating support for control panel - High shear mixer capacity: 350 l (motor 7.5 kW) - Agitator capacity: 700 l (motor 3 kW) - Grout pump: Qmax 167 l/min, Pmax 25 bar (motor 7.5 kW)
