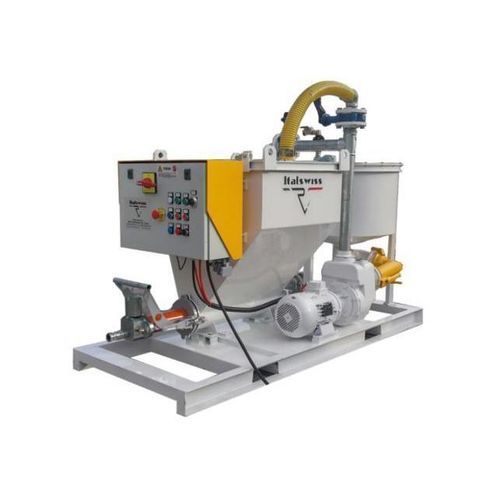

Mixer pump VARANO

Varano combines the advantages of a progressive cavity pump with those of a high shear mixer that permits to have homogenous mixtures even with problematic products like bentonite and mixes with additives. A big mixing hopper maintains in suspension the mixed products. The exchangeable pumping bodies allow to have a wide range of pressure and flow rate. It is possible also to adjust the flow rate of the pump by changing the speed of a motor, from 140 to 400rpm for an electric version and from 5 to 400rpm for a hydraulic version that requires a total of 80l/min–150bar of pressure of oil (30l/min for mixer and 50l/min for pump). Technical Data: - MP2: 240 rpm – Qmax 240 l/h – Pmax 60 Bar; 400 rpm – Qmax 400 l/h – Pmax 60 Bar - MP3: 240 rpm – Qmax 750 l/h – Pmax 70 Bar; 400 rpm – Qmax 1250 l/h – Pmax 70 Bar - MP8: 240 rpm – Qmax 1380 l/h – Pmax 60 Bar; 400 rpm – Qmax 2350 l/h – Pmax 60 Bar - MP13: 240 rpm – Qmax 2700 l/h – Pmax 60 Bar; 400 rpm – Qmax 4500 l/h – Pmax 60 Bar Spares and Accessories: Available upon request. - Progressive cavity pump with high shear mixer - Homogenous mixtures even with problematic products (e.g., bentonite, additives) - Large mixing hopper for suspension - Exchangeable pumping bodies for wide pressure and flow range - Adjustable flow rate by motor speed - Electric version: 140–400 rpm - Hydraulic version: 5–400 rpm (80 l/min – 150 bar oil; 30 l/min for mixer, 50 l/min for pump)
