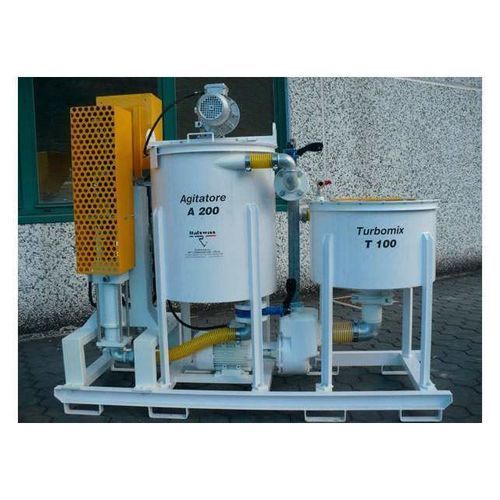

Mixer pump MINIGROUT I – I PLUS

Adjustable pressure (low and high) mixing and grouting unit. The high shear mixer creates a cement mix, transferred to the agitator which keeps it in suspension. Then the cement mix is transferred to a double effect piston pump. The grouting unit is recommended for bentonite muds and mixes injection for: micropiles, PVC tubes, self-drilling anchors and geothermal wells. It can be delivered equipped with a hydraulic motor and power pack. - High shear mixer: Capacity: 100 l – Motor 4 kW - Agitator: Capacity: 200 l; motor 0.75 kW - Minigrout I Grout pump: Qmax: 34 l/min – Pmax 80 bar - Minigrout I Plus Grout pump: Low pressure: Qmax: 44 l/min – Pmax 55 bar; High pressure: Qmax 18 l/min – Pmax 110 bar - Adjustable pressure mixing and grouting unit - High shear mixer for cement mix - Agitator keeps mix in suspension - Double effect piston pump - Recommended for bentonite muds, micropiles, PVC tubes, self-drilling anchors, geothermal wells - Optional hydraulic motor and power pack
