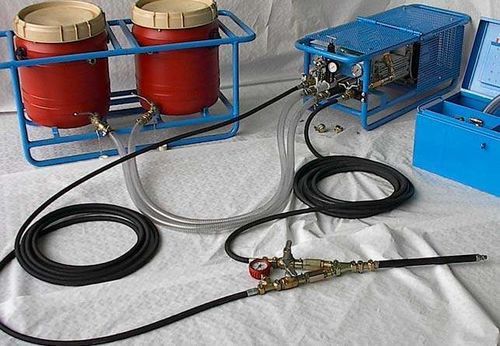

Piston pump DP-40-PU

for polyurethanefor resinstwo-component resin

Italswiss resins pump are able to inject two components polyurethane resins with 1:1 ratio. The injection pump DP 40 PU is pneumatically driven, double acting piston pumps operating according to the pressure intensification principle. The pneumatic pressure is multiplied on the base of the ratio between the pump drive zone (low-pressure) and the high-pressure zone; For the DP 40 PU it is 41:1. The low-pressure and high-pressure zones are separated in such a way that if the sealings positioned in the high-pressure zone are not leakproof, the possible losses cannot enter into the low-pressure zone. The piston rods are made of high-tensile stainless steel and boast long service lives. The valve seats are made of wearproof quenched steel and sealings of UHMWPE special material. - Injects two-component polyurethane resins (1:1 ratio) - Pneumatically driven, double acting piston pump - Pressure intensification principle (41:1 ratio) - Separated low and high-pressure zones for safety - Piston rods: high-tensile stainless steel - Valve seats: wearproof quenched steel - Sealings: UHMWPE special material
