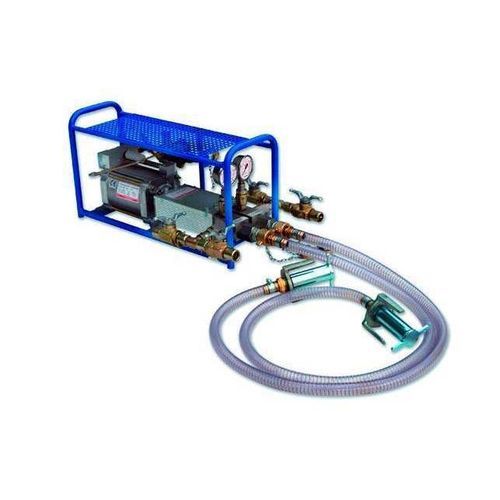

Piston pump S-35-PU

for polyurethanepneumaticself-priming

Italswiss resins pump are able to inject two components polyhurethan resins with 1:1 ratio. The injection pump S-35-PU is pneumatically driven, double acting piston pumps operating according to the pressure intensification principle. The pneumatic pressure is multiplied on the base of the ratio between the pump drive zone (low-pressure) and the high-pressure zone; For the S-35-PU it is 34:1. The low-pressure and high-pressure zones are separated in such a way that if the sealings positioned in the high-pressure zone are not leakproof, the possible losses cannot enter into the low-pressure zone. The piston rods are made of high-tensile stainless steel and boast long service lives. The valve seats are made of wearproof quenched steel and sealings of UHMWPE special material. - Injects two-component polyurethane resins at 1:1 ratio - Pneumatically driven, double acting piston pump - Pressure intensification principle (34:1 ratio) - Separation of low and high-pressure zones for safety - Piston rods: high-tensile stainless steel - Valve seats: wearproof quenched steel - Sealings: UHMWPE special material
