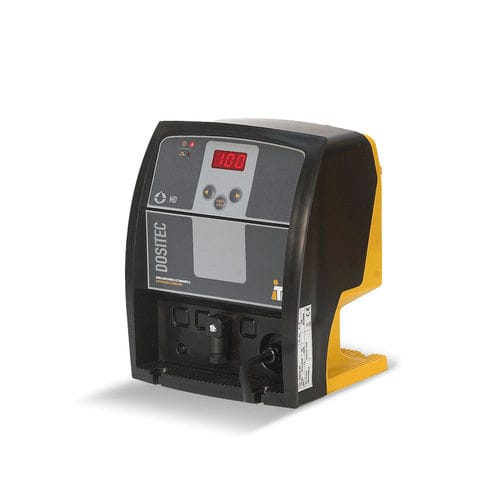

Water pump Dositec MD electricdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- metering, service, feed
- Voltage
- 230 V
- Protection level
- IP65
- Flow
Max.: 9 l/h
(2.37755 us gal/h)Min.: 2.5 l/h
(0.66043 us gal/h)- Pressure
Max.: 20 bar
(290.075 psi)Min.: 7 bar
(101.526 psi)- Power
37 W, 58 W
(0.05 hp, 0.08 hp)- Length
190 mm
(7 in)- Width
172 mm
(6.77 in)- Height
210 mm
(8.27 in)- Weight
3 kg, 3.8 kg
(6.61 lb, 8.38 lb)
Description
The dosing pumps DOSITEC are heavy duty, high precission, electric diaphragm pumps for dosing liquid products.
DOSITEC dosing pumps are manufactured with materials that can resist most chemicals products, even acids. They are designed for all sorts of processes where it is necessary to dose a product into a hydraulic network, such as: food, textile, chemical industry, water treatments, etc. In case there is any doubt about compatibility of materials with the products to be used please contact ITC S.L. Technical Service.
The metering pump has been designed to feed liquids with capacities from 0 to 15 l/h and pressures from 0 to 10 bar. They also include a conexion for a level switch.
