Steel hanger 0.0.446.04

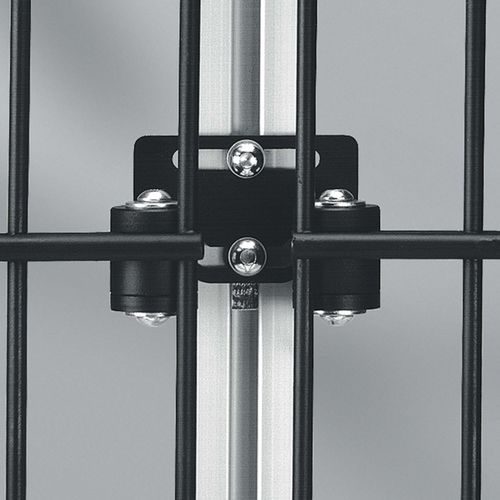

The Dual-Rod Mesh Hanger accommodates the Dual-Rod Mesh elements on the cross-rods (⌀ 8 mm) at any angle between 0° - 270° to the Stand Profile. Even after the fastening screws have been tightened, the fastening can still be rotated. This also forms a hinge for a swing door. The Dual-Rod Mesh is first hung from a preassembled Dual-Rod Mesh Hanger, and then screwed into position with further Hangers. Recommended spacing of Hangers: 3 section heights, corresponding to 600 mm. The slotted hole fastening on the Stand Profile enables adjustment of the position and angle. The ability to move the mesh horizontally (depending on the mesh width) in the Dual-Rod Mesh Hanger helps compensate for minor assembly errors. Average dimensions for connecting the Dual-Rod Mesh to the Stand Profile. Thanks to the swivel action of the Dual-Rod Mesh Hanger, corner zones can be constructed with an extremely wide angular range.
