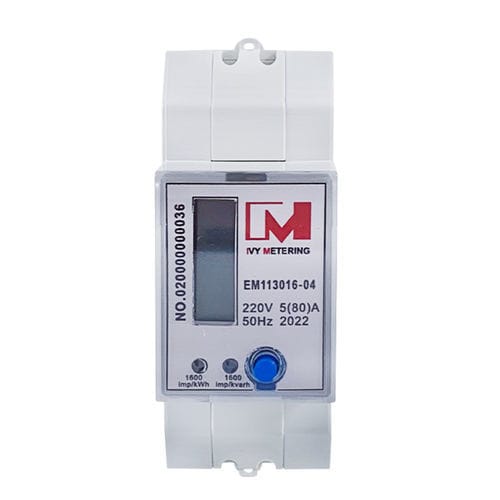

Single-phase electric energy meter EM113016-04

DIN railRS-485residential

EM113016-04 is a mono-phase Din Rail meter and it is a RS485 meter. It supports RS485 Communication.This meter has two display modes: automatic scroll display and by pressing page-turning buttons. When overload, alarm will be sent by LED backlight and built-in relay will disconnect.This RS485 meter can read and write data via RS485 and realize remote control via relay. The meter is designed to measure AC active energy and variable parameter. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC61036 and its data communication rules obey the requirement of DL/T645. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume. Brief introduction The EM113016-04 is a versatile electricity meter with latching relay designed for single-phase applications. It's equipped with a range of features that make it suitable for both residential and commercial use. Multi-functional Measurement: Accurately measures active and reactive power, voltage, current, power factor, frequency, demand, and energy consumption. RS485 Communication: Supports MODBUS, DLT645-1997, and DLT645-2007 protocols for seamless integration with various systems. Enables remote reading, control, and configuration. LCD Display: Provides clear and customizable display of measured parameters. Users can configure the display sequence and interval to meet specific needs. Built-in Latching Relay: Equipped with a relay for automatic disconnection in case of overloads or other abnormal conditions, ensuring the safety of connected equipment.
