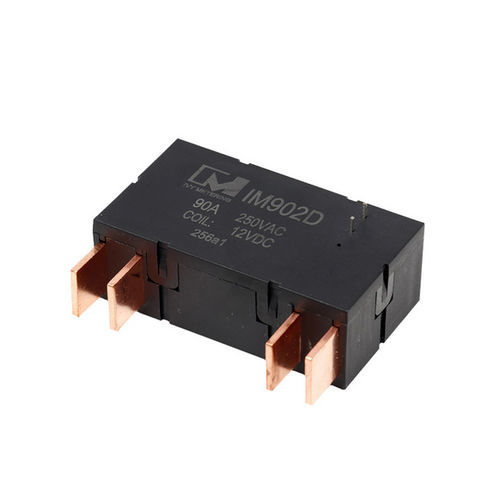

Latching relay IM902D

12VDC24VDC6VDC

Both IM901D and IM902D are 2-pole latching relays with MAX current up to 90A, and switching 90A 250VAC. Single and Double coil optional. The main advantages of the two groups of relays include long life, high reliability, high sensitivity, low power consumption, good electromagnetic compatibility, fast switching, and low electromagnetic interference. - Small size, big switching power, and low consumption - Coil instantaneous pulse driving and without fever - Stable permanent magnet force and save energy - Low contact resistance, stable and reliable, anti-vibration/anti-shock. - 4kV dielectric strength between coil and contacts - Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt - IEC62052-31 UC2/UC3 standard - Dimension: 54.6*30.8*19 mm - Weight: ≈66 g - Contact Arrangement: 2A/2B - Contact Material: AgSnO2 - Ambient Temperature: -40~+85°C - Ambient Humidity: 45%~95%RH - Vibration: 10~55Hz, 1.5mm (DA) - Nominal Voltage: 6~24VDC - Power Consumption: Single Coil: 2.5W, Dual Coil: 5W - Max. Switching Voltage: 250VAC - Max. Switching Current: 90A - Contact Resistance: 2000VAC 1min, Coil To Contact >4000VAC 1min - Electrical Life: >10,000 cycles - Mechanical Life: >100,000 cycles - Picking-up & Release Time: ≦30ms - Pulse Duration: ≧100ms - Functional Shock Resistance: 10G - Destructive Shock Resistance: 100G
