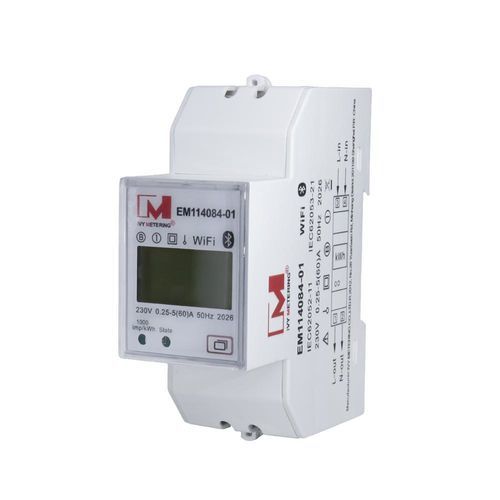

Single-phase electric energy meter EM114084-01

DIN railprepaidwith built-in communication

Product Presentation
EM114084-01 is a single-phase dual-section Wi-Fi electricity meter equipped with a motor holding relay and a Wi‑Fi IoT communication module. After power-on, Wi‑Fi parameters can be configured via Bluetooth and the meter automatically connects to the network. The unit supports remote meter reading, remote recharge, remote balance clearing, remote control, overcurrent trip and automatic trip on balance exhaustion.

Key Functions

• Wi‑Fi communication
• Supports Modbus‑TCP communication protocol
• Bidirectional energy metering
• Prepaid function: supports prepayment for energy and electricity charges (STS)
• Built-in motor holding relay for remote on/off control and overcurrent cut-off
• Wi‑Fi parameters configurable via Bluetooth; automatic network connection

Additional Details

• Supports remote recharge and remote balance clearing
• Capable of remote meter reading and remote control operations
• Automatic trip when balance is exhausted

Technical specifications

• Model: EM114084-01
• Brand: IVY METERING
• Approval: MID approved
• Rated current: 60 A
• Phase: Single phase (1P)
• Structure: Single-phase dual-section
• Communication protocols: Wi‑Fi, Modbus‑TCP
• Measurement: Bidirectional energy metering
• Prepaid: Prepayment (STS) support for energy and electricity charges
• Relay: Built-in motor holding relay for remote on/off and overcurrent protection
• Configuration: Wi‑Fi configuration via Bluetooth and automatic network connection
• Remote features: remote meter reading, remote recharge, remote balance clearing, remote control, overcurrent trip, automatic trip on balance exhaustion
