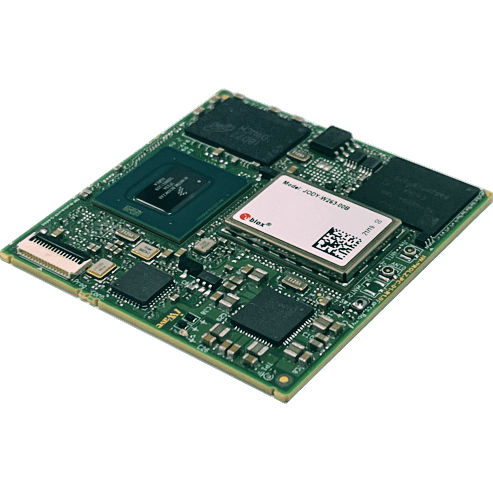

NXP i.MX8M computer-on-module i.MX 8M Plus

i.MXARMv8HDMI

i.MX 8M Plus Q/QL/D CPU with 64-bit ARMv8 Architecture NPU with up to 2.3 TOP/s Neural Network performance Up to 8GB LPDDR4 Memory IEEE 802.11a/b/g/n/ac/ax Wi-Fi & Bluetooth 5.0 (ax is optional) 10+ years of Product Longevity Program Excels in ML vision, edge intelligence & advanced multimedia applications OSM v1.0, Size-L Solderable Module CPU - i.MX 8M Plus Quad : 4 x Cortex-A53, 1 x Cortex-M7, GPU, VPU, NPU ,ISP & HiFi4 Audio DSP i.MX 8M Plus Quad Lite : 4 x Cortex-A53, 1 x Cortex-M7 & GPU i.MX 8M Plus Dual : 2 x Cortex-A53, 1 x Cortex-M7, GPU, VPU, NPU ,ISP & HiFi4 Audio DSP Memory & Storage - LPDDR4 – 2GB (Expandable up to 8GB) eMMC Flash – 16GB (Expandable up to 256GB) Other - IEEE 802.11 a/b/g/n/ac/ax Wi-Fi & BT 5.0 (ax is optional) RGMII X 2 USB 3.0 x 2 USB 2.0 x 2 PCIe 3.0 x 1 SDIO x 2 (4 bit x 1, 8 bit x 1** ) HDMI 2.0a TX x 1 SPI x 2 CAN x 2 *4 lane MIPI CSI X 1 is Optionally available through vendor defined pins **Optional feature I2C x 2 OSM GPIOs 4 lane MIPI DSI x 1 4 lane MIPI CSI X 1* 4 lane MIPI CSI x 1 4 lane LVDS x 2 I2S x 1 UART x 4 ( 1 is optional) PWM x 1
