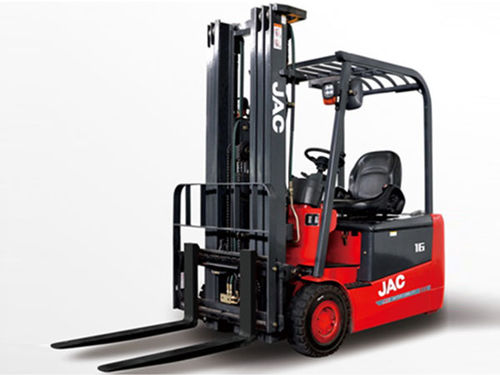

Electric forklift truck CPD series
ride-on

Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on - image - 2
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on - image - 3
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on - image - 4
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on - image - 5
Electric forklift truck - CPD series - JAC Heavy-duty Construction Machine - ride-on - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Carrying capacity

Max.: 2 t
(2.2 us ton)

Min.: 1.6 t
(1.8 us ton)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,066 mm, 1,156 mm
(42 in, 45.5 in)

Overall length

1,930 mm, 2,080 mm
(76 in, 81.9 in)

Weight without load

3,200 kg, 3,260 kg, 3,550 kg
(7,054.8 lb, 7,187.1 lb, 7,826.4 lb)

Free lift

150 mm
(5.9 in)

Height to top of overhead guard

1,960 mm, 2,020 mm
(77.2 in, 79.5 in)

Ground clearance under mast with load

100 mm, 102 mm
(3.9 in, 4 in)

Turning circle radius

1,550 mm, 1,680 mm
(61 in, 66.1 in)

Travel speed

13 km/h, 14 km/h
(8.1 mph, 8.7 mph)

Lifting speed

200 mm/s, 260 mm/s

Rated drawbar pull

14 kN, 18 kN

Gradeability

15 %

Rated output

4.8 kW
(6.5 hp)

Maximum operating pressure

15.5 MPa

Description

The lifting down cushion can reduce the impact to improve stability and safety. Idling control system can prevent accidents caused by sudden start of the truck. When the driver leaves the OPS seat, the whole vehicle does not work, ensuring the safety of driver and vehicle. The shock absorption and well upholstered seat makes the driving more comfortable. The lift truck is equipped with LED lights with high brightness, featuring energy-saving and long lifespan. High end control system and instruments enable stable performance and convenient maintenance.
