Electric forklift truck JE Series
ride-onwaterproof4-wheel

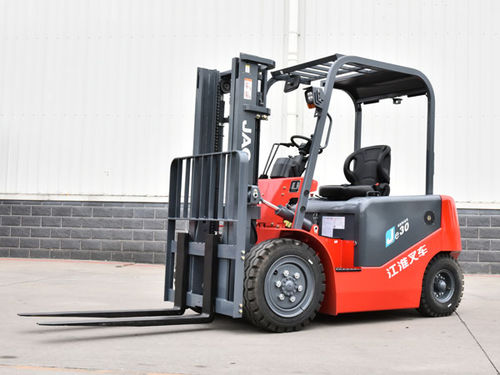

Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel - image - 2
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel - image - 3
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel - image - 4
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel - image - 5
Electric forklift truck - JE Series - JAC Heavy-duty Construction Machine - ride-on / waterproof / 4-wheel - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Other characteristics
4-wheel, waterproof
Carrying capacity

Max.: 3 t
(3.3 us ton)

Min.: 2 t
(2.2 us ton)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,072 mm, 1,250 mm
(42.2 in, 49.2 in)

Overall length

2,320 mm, 2,609 mm
(91.3 in, 102.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,220 kg, 4,550 kg
(7,098.9 lb, 10,031 lb)

Height of mast when lowered

1,990 mm, 2,065 mm
(78.3 in, 81.3 in)

Free lift

120 mm, 160 mm
(4.7 in, 6.3 in)

Overall height with mast raised

3,930 mm, 4,260 mm
(154.7 in, 167.7 in)

Height to top of overhead guard

2,132 mm, 2,180 mm
(83.9 in, 85.8 in)

Seat height

980 mm, 1,020 mm
(38.6 in, 40.2 in)

Ground clearance under mast with load

93 mm, 120 mm
(3.7 in, 4.7 in)

Turning circle radius

2,135 mm, 2,497 mm
(84.1 in, 98.3 in)

Travel speed

12 km/h, 13 km/h
(7.5 mph, 8.1 mph)

Lifting speed

240 mm/s, 380 mm/s, 400 mm/s

Lowering speed

400 mm/s, 430 mm/s, 460 mm/s

Rated drawbar pull

13 kN, 21 kN

Gradeability

15 %

Rated output

8 kW, 11.5 kW
(10.9 hp, 15.6 hp)

Maximum operating pressure

15.5 MPa, 18.5 MPa

Description

1. High operation performance Continuous working time – 8-10 hours Energy regeneration function – Regenerative energy can be fed back to the battery during braking, slow down and steering, so that the battery can be used for a longer period of time. Automatic power-off – Neutral gear stays more than 5 seconds when the forklift truck stops running, the electric motor will automatically shut off, resulting in reduced power consumption. Forklift truck with high strength and low center of gravity – With integrated design, the forklift frame features high bearing capacity. (Patent number: ZL201220133447.2) 2. High safety and reliability High waterproof performance - Totally enclosed motor, IP54 rating High insulation performance – Electrical end caps are used, providing reliable protection from environmental damage. Optimum sealing performance - The hydraulic system adopts 24˚ Cone with O-ring, ensuring reliable sealing. Mast buffering function – Buffering design efficiently protects cargo safety during goods lifting and lowering to the ground. Neutral gear safety system – This system effectively prevents accidents caused by accidental start of the lift truck. 3.Maximum comfort during driving Forklift steering axle for vibration reduction – It effectively controls operator shock and vibration during running. High waterproof performance - Totally enclosed motor, IP54 rating 4.Easy operation and maintenance Easy read forklift instrument panel – It clearly displays the status of forklift performance for easy operation and maintenance. High waterproof performance - Totally enclosed motor, IP54 rating
