Electric forklift truck HE 3 Series
ride-oncounterweightwaterproof

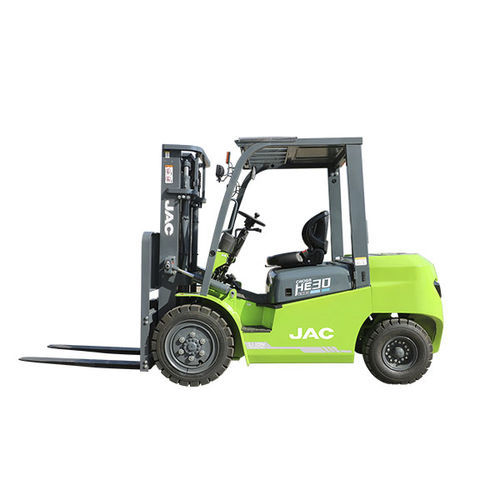

Electric forklift truck - HE 3 Series - JAC Heavy-duty Construction Machine - ride-on / counterweight / waterproof
Electric forklift truck - HE 3 Series - JAC Heavy-duty Construction Machine - ride-on / counterweight / waterproof
Electric forklift truck - HE 3 Series - JAC Heavy-duty Construction Machine - ride-on / counterweight / waterproof - image - 2
Electric forklift truck - HE 3 Series - JAC Heavy-duty Construction Machine - ride-on / counterweight / waterproof - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Other characteristics
4-wheel, counterweight, high-speed, waterproof
Carrying capacity

Max.: 3.5 t
(3.9 us ton)

Min.: 2 t
(2.2 us ton)

Lifting height

3,000 mm
(118.11 in)

Overall length

2,540 mm, 2,709 mm, 2,724 mm
(100 in, 106.7 in, 107.2 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 4,760 kg
(10,494 lb)

Min.: 3,340 kg
(7,363.4 lb)

Height of mast when lowered

1,995 mm, 2,075 mm
(78.5 in, 81.7 in)

Overall height with mast raised

4,030 mm, 4,260 mm
(158.7 in, 167.7 in)

Travel speed

14 km/h, 15 km/h, 20 km/h
(8.7 mph, 9.3 mph, 12.4 mph)

Lifting speed

Max.: 500 mm/s

Min.: 280 mm/s

Gradeability

15 %

Rated output

11 kW, 15 kW, 16.6 kW, 20 kW
(15 hp, 20.4 hp, 22.6 hp, 27.2 hp)

Description

1. Appearance and Performance Upgrade 1) Lower center of gravity counterweight, achieving a stability factor of 1.53. 2) The body length is reduced by 50-85mm, resulting in a smaller turning radius. An AC asynchronous aluminum shell motor 3) An AC asynchronous aluminum shell motor is adopted, improving heat dissipation performance by 10%. 4) The high-speed ratio gearbox allows for an increment of driving speed by 15%, an enhancement of full-load lifting speed by 6%, and an improved climbing capability by 15%. 2. Configuration Upgrade 1) Standard battery heating for the entire series ensures a worry-free operation in cold weather. 2) Standard dual pedals are more in line with the traditional driving habits. 3) 2-2.5T forklifts can be equipped with 150-350AH batteries; 3-3.5T forklifts can be equipped with 175-460AH batteries, providing longer battery life. 4) Optional 450A controller allows for easy operation of the boarding bridge. 3. Safety Upgrade 1) Vehicle-level rain and water immersion testing guarantee the inlet connectors with excellent waterproof performance. 2) Lithium battery comes with a protection rating of IP65, ensuring safety and reliability. 3) The outer cover of the charging port is equipped with magnetic attraction and rubber sealing strips to prevent the rainwater from entering. 4) The REMA plug is wrapped with heat shrink tubing to prevent the rainwater from flowing back along the cable. 5) Card swipe start, OPS descent lock. 6) The forklift will automatically enter sleep mode after 30 minutes of inactivity, ensuring enhanced safety and energy efficiency.
